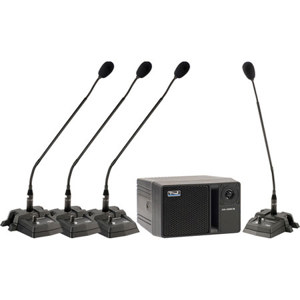

Anchor Audio CouncilMAN Conference with 3 Mics/WH-6000
Anchor Audio CouncilMAN Conference System Package CM-4W
SKU: AACM4W MFR: CM-4W
What's Included
What's Included With This Item:
- Anchor Audio One Chairman Mic
- Three Delegate Mics
- One AN-100CMU1 Speaker/Amplifier with Built-in UHF Receiver
- One WH-6000 Handheld Mic
- Three 4' XLR Cables
- One 25' XLR Cable
- Sturdy Carrying Case with Foam Inserts
- Anchor Audio 6 Years Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
Anchor Audio's portable conference system travels from the council chambers to community center with ease of setup and simplicity of use. The CouncilMAN is flexible to the demands of most room sizes and manages up to ten microphones.
- Anchor Audio One Chairman Mic
- Three Delegate Mics
- One AN-100CMU1 Speaker/Amplifier with Built-in UHF Receiver
- One WH-6000 Handheld Mic
- Three 4' XLR Cables
- One 25' XLR Cable
- Sturdy Carrying Case with Foam Inserts
- Anchor Audio 6 Years Warranty
- The AN-100CM powers up to ten microphones
- Conference microphones daisy chain with standard XLR cables
- Cardioid electret microphones have excellent "pick-up"
- Each microphone has adjustable volume control
- Chairman microphone can mute all delegate microphones
- Immunity from mobile telephone interference
- 1/4" & XLR balanced Line Out for recording, connection to house audio system or Assistive Listening System
- 3.5mm Line In for music player device
- Reaches crowds up to 100 people
| Rated Power Output |
30 watts |
| Max SPL @ Rated Power |
106 dB @ 1 meter |
| Frequency Response |
65 Hz - 18 kHz ± 3 dB |
| Speaker Type |
4.5" woofer, 10 mm dome tweeter Magnetically Shielded |
| AC Power Reqs. |
100 - 240 VAC, 50/60 Hz |
| Fuse Rating |
T 1.0A / 250V (internally mounted) |
| Microphone Base - Power Requirement |
+22 VDC @ 60 mA from pin 2 of daisy chain |
| Microphone Base - Output Impedance |
>10k ohms |
| Microphone Base - Phantom Power |
18V |
| Microphone Base - Daisy Chain In/Out |
Male and Female 3 pin XLR |
| Microphone Base - CHM-100 Controls |
Push to Talk, Volume and Mute Others |
| Microphone Base - DEL-100 Controls |
Push to Talk and Volume |
| Microphone Base - Dimensions (HxWxD) |
5.8 x 6.5 x 1.75" / 14.73 x 16.51 x 4.45 cm |
| Microphone Base - Weight |
0.90 lbs / .41 Kg |
| Line In |
3.5mm |
| Line Out |
Lo-Z, buffered, XLR and 1/4" Balanced |
| Line Output Level |
-20 dBV (100 mVrms) |
| Enclosure Material |
ABS Plastic |
| Dimensions (HxWxD) |
5.25 x 8.4 x 9" / 13 x 21 x 23 cm |
| Weight |
8.5 lbs / 3.8 Kg |
