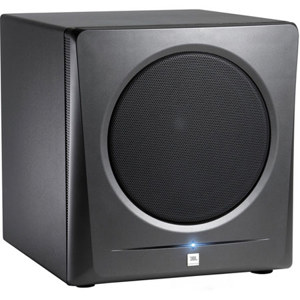

JBL LSR2310SP/230 Powered Studio Subwoofer
JBL LSR2310SP/230 Powered Studio Subwoofer LSR2310SP/230
SKU: JBLL2310SP2 MFR: LSR2310SP/230
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The JBL LSR2310SP/230 Powered Studio Subwoofer is based on a 10" long excursion woofer and a 180 watt power amplifier. Added to a stereo system, it extends the low-frequency response of the system below 30 Hz. In a surround sound system the sub provides stunning reproduction of the LFE (low-frequency effects) channel. The LSR2310SP is packed with professional features including two sets of balanced XLR, 1/4" and unbalanced RCA input connectors, selectable crossover settings and two sets of balanced outputs to allow connection of Left and Right main speakers. A detented level control allows independent adjustment of the subwoofer output to balance the subwoofer in the system.
- Two sets of balanced XLR, 1/4" and unbalanced RCA input connectors
- Magnetic Shielding
- Level Control
| Frequency Range |
28 Hz - 2kHz |
| Max SPL Continuous |
> 104 dB |
| Max SPKL Peak |
> 113 dB |
| Drivers (LF) |
10" (254 mm) 230H |
| Input Connectors |
L&R: Balanced XLR, 1/4" TRS, RCA |
| Output Connectors |
L&R: Balanced XLR, 1/4" TRS |
| Selectable Crossover |
80 Hz / 120 Hz / External |
| Amplifier Power |
LF: 180W |
| Input Sensitivity |
92 dB SPL / 1m @ -10dBV Balanced Input (80 Hz Crossover) |
| Enclosure |
18 mm (3/4") MDF |
| Dimensions (H x W x D) |
415 mm x 381 mm x 438 mm (16.33" x 15" x 17.25") |
| Weight |
20.7 kg (45.6 lbs) |
