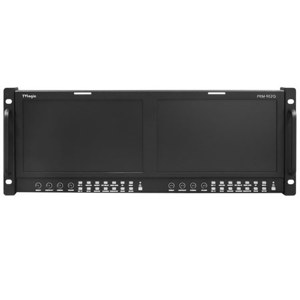

TVLogic PRM-902Q Dual 9" LCD 4RU Multi-Channel Rack Monitor
TVLogic
TVLogic PRM-902Q Dual 9" LCD 4RU Multi-Channel Rack Monitor PRM-902Q
SKU: TLPRM902Q MFR: PRM-902Q
What's Included
What's Included With This Item:
- TVLogic PRM-902Q Dual 9" LCD 4RU Multi-Channel Rack Monitor
- AC Power Cord
- DC Power Adaptor
- TVLogic Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The TVLogic PRM-902Q features two 960 x 540 (exactly half 1920 x 1080) resolution high contrast (1000:1) LCD panels in a 4RU rack mount with 90-degree tilt range, 2x HD/SD-SDI auto switching inputs, analog inputs (composite, S-video, YPbPr), RGB 16.7 million color support, closed captioning support (CEA-608/708), waveform and vectorscope, active format description support, H/V delay, markers and safety, embedded audio metering (8 Ch), timecode display (VITC and LC), auto color calibration support and more.
- TVLogic PRM-902Q Dual 9" LCD 4RU Multi-Channel Rack Monitor
- AC Power Cord
- DC Power Adaptor
- TVLogic Warranty
- Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
- 2x HD/SD-SDI inputs (Auto Detecting/Switching) with Active Loop Through
- Dual High Definition 9" (960 x 540) 16.7 megapixel Wide Screen
- Varieties of Analog Input (Composite, S-Video, YPbPr, RGB)
- 4RU of a standard EIA 19" rack
- Assignable Remote Control
- Closed Caption: CEA-608/708
- AFD
- H/V Delay mode
- Analog Stereo Audio Out (Phone Jack)
- Internal Left & Right Speaker (2 x 1 W)
- Blue Only & Monochrome
- Markers & Safety Areas including user defined Markers
- Source ID Function (User Defined in OSD Function)
- Embedded Audio Level Meter (16 Ch) Vertical/Horizontal
- Timecode Display (VITC & LTC)
- Selectable Full & Small Size, WaveForm(Y Cb Cr)/Vector Scope - HD/SD (SDI only)
| No. of screens |
2 |
| LCD Size |
9 inch /198.72 (H) X 111.78 (V) mm |
| Resolution |
960 x 540 (16: 9) |
| Pixel Pitch |
0.207 mm |
| Color Depth |
16.7M (True 8bit) |
| Viewing Angle (Typ.) |
170deg.(H) / 170deg.(V) |
| Luminance (Max.) |
400cd/m2 (center) |
| Contrast Ratio |
1000:1 |
| Input (1 Screen) |
3 x BNC: 3 Analog Inputs (S-Video / RGB / Component Video)
2 x BNC: SDI 2 Channel Inputs
1 x BNC: CVBS Input |
| Output (1 Screen) |
2 x BNC: SDI Channel / CVBS Outputs
1 x Phone Jack: Analog Stereo Audio Out
2 x Speaker: 2 X 1W |
| Input Signal: Analog |
CVBS (1.0Vpp with Sync)
S-Video(1.0Vpp Y with Sync, 0.268Vpp [c])
Component(1.0Vpp Y with Sync, 0.7Vpp [Pb, Pr])
RGB(1.0Vpp G with Sync, 0.7Vpp [B.R]) |
| Input Signal: HD-SDI |
1.485Gbps |
| Input Signal: SD-SDI |
270Mbps |
| SDI Input Signal Formats |
SMPTE-274M: 1080i (60 / 59.94 / 50); 1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080 (23.98psf/24psf/23.98p/24p) |
| CVBS Input |
NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 / 59.94i) |
| S-Video Input |
NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 / 59.94i) |
| Component, RGB Input |
480i (59.94), 576i (50), 480P (59.94), 576P (50)
1080i (60/59.94/50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (50/59.94/60) |
| Power |
DC 12V / 3A |
| Power Consumption (Approx.) |
36 Watts |
| Operating Temperature |
0 deg.C to 40 deg.C (32 deg.F to 104 deg.F ) |
| Storage Temperature |
-30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F ) |
| Dimensions |
480 x 176 x 63mm (18.89 x 6.92 x 2.48")/4RU |
| Weight |
4.1 Kg / 9.0 lbs |
