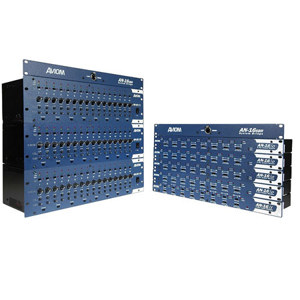

| AN-16/i-M: Audio Inputs |
16, balanced mic- or line-level, XLR combo connector |
| AN-16/i-M: XLR Input (mic/line) |
Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio - |
| AN-16/i-M: TRS Line Inputs & Send/Return |
Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| AN-16/i-M: Audio Thru |
XLR; Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio -
Direct coupled passive throughput |
| AN-16/i-M: Insert Send |
Impedance balanced; Nominal level: 0dBu; Peak
Level (A/D clip point): +14dBu |
| AN-16/i-M: Insert Return |
TRS balanced; Nominal level: 0dBu; Peak Level
(A/D clip point): +14dBu |
| AN-16/i-M: Analog to Digital Conversion |
48kHz sample rate, 24 bit |
| AN-16/i-M: Operating Level |
+4dBu |
| AN-16/i-M: Frequency Response |
4Hz-22kHz |
| AN-16/i-M: A-Net Output |
One Category 5 (RJ45 connector) |
| AN-16/i-M: A-Net Expansion |
One Category 5 (RJ45 connector) |
| AN-16/i-M: Gain Range |
Mic: +6dB to +60dB; Line: -15dB to +36dB |
| AN-16/i-M: Channel LED Indicators |
Signal Present and Clip, per channel |
| AN-16/i-M: Line Inputs |
Impedance: 48k ohms |
| AN-16/i-M: Metering |
LEDs; green: Signal Present, red: Clip; per channel |
| AN-16/i-M: Stereo Operation |
Stereo Link, per channel pair;
Two-position switch (Normal, Link) |
| AN-16/i-M: Maximum Input Level |
Mic: +14dBu; Line: +28dBu |
| AN-16/i-M: Input Impedance |
Mic: 2.4k ohms; Line (TRS): 33k ohms;
Insert Return: 39k ohms |
| AN-16/i-M: A/D Frequency Response |
-0.1dB @ 20kHz (-0.4dB @ 20.0kHz, measured from Mic or Line in)
-3dB @ 1.5Hz (-3dB @ 2.0Hz, measured from Micro Line in) |
| AN-16/i-M: THD +N |
< 0.003% |
| AN-16/i-M: Crosstalk |
-90dB |
| AN-16/i-M: Bit Error Rate (BER) |
10-12 |
| AN-16/i-M: Signal to Noise (unweighted) |
A/D: -105dB Reference = +14dBu (A/D clip point)Send jack: -113dB (Gain = minimum) |
| AN-16/i-M: EIN (Equivalent Input Noise) |
-128dBu
(Rs = 150 ohms, 20kHz BW, Gain = +60dB) |
| AN-16/i-M: CMRR |
80dB @ 120Hz (Gain = +60dB) |
| AN-16/i-M: Low Cut Filter |
-3dB @ 85Hz, -18 dB per octave |
| AN-16/i-M: Phantom Power |
+48 volts, per channel, switch with LED |
| AN-16/i-M: Digital Outputs |
A-Net: 2 (Main and Aux); A-Net Expansion: 1 |
| AN-16/i-M: Pro16 A-Net |
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable
uses unshielded Cat-5e UTP (or better) cable |
| AN-16/i-M: Latency |
<0.880 msec (measured from analog input to analog output) |
| AN-16/i-M: Power Supply |
Internal, universal switching type; IEC jack |
| AN-16/i-M: Voltage |
100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL |
| AN-16/i: Audio Inputs |
16, balanced line-level, 1/4-inch TRS connector |
| AN-16/i: Inputs |
Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| AN-16/i: TRS Thru |
Impedance matched output |
| AN-16/i: Analog to Digital Conversion |
48kHz sample rate, 24 bit |
| AN-16/i: Frequency Response |
4Hz-22kHz |
| AN-16/i: A-Net Output |
One Category 5 (RJ45 connector) |
| AN-16/i: A-Net Expansion |
One Category 5 (RJ45 connector) |
| AN-16/i: Gain Settings |
Four-position switch, -10dBv, 0dBu, +4dBu and +22dBu |
| AN-16/i: Channel LED Indicators |
Signal Present and Clip, per channel |
| AN-16/i: Line Inputs |
Impedance: 48k ohms |
| AN-16/i: Metering |
LEDs; green: Signal Present, red: Clip; per channel |
| AN-16/i: Stereo Operation |
Stereo Link, per channel pair;
Two-position switch (Normal, Link) |
| AN-16/i: Maximum Input Level |
+22dBu |
| AN-16/i: Input Impedance |
17.8k ohm |
| AN-16/i: Freq. Response |
4Hz-22kHz +0.2dB/-3dB |
| AN-16/i: THD +N |
< 0.003% |
| AN-16/i: Crosstalk |
-90dB |
| AN-16/i: Bit Error Rate (BER) |
10-12 |
| AN-16/i: Signal to Noise (unweighted) |
90dB typical, A/D to D/A
Measured from AN-16/i to AN-16/o Output Module |
| AN-16/i: Digital Outputs |
A-Net: 1; A-Net Expansion: 1; RJ45 connector |
| AN-16/i: A-Net Pro16 |
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable;
use unshielded Cat-5e UTP (or better) cable |
| AN-16/i: Latency |
<0.880 msec (measured from analog input to analog output) |
| AN-16/i: Power Supply |
External, DC, universal switching type |
| AN-16/i: Input Voltage |
100-240 volts, 50/60Hz, 30VA |
| AN-16/i: Output Voltage |
18-24 VDC, 0.5 amp |
| AN-16/i: Plug Size |
2 mm |
| AN-16/i: Power |
18-24 VDC, 500mA |
| AN-16/o v.4: Audio Outputs |
16 channels, balanced |
| AN-16/o v.4: Outputs |
DB25 multipin connectors (2); Tascam analog audio pinout
Impedance balanced output for mic, +4dBu and +18dBu; differential output for +24dBu |
| AN-16/o v.4: D/A Conversion |
48kHz sample rate, 24 bit |
| AN-16/o v.4: Frequency Response |
4Hz-22kHz |
| AN-16/o v.4: A-Net Input/Output |
One EtherCon Category 5 (RJ45 connector) |
| AN-16/o v.4: A-Net Expansion |
One EtherCon Category 5 (RJ45 connector) |
| AN-16/o v.4: Output Level Settings |
Four-position switch, per channel pair; +24dBu, +18dBu, +4dBu and Mic |
| AN-16/o v.4: Channel LED Indicators |
Signal Present and Clip, per channel |
| AN-16/o v.4: Metering |
LEDs; green: Signal Present; red: Clip; per channel |
| AN-16/o v.4: Maximum Output Level |
+24dBu |
| AN-16/o v.4: Output Impedance |
226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic) |
| AN-16/o v.4: Freq. Response |
4Hz-22kHz +0.2dB/-3dB |
| AN-16/o v.4: THD +N |
< 0.004% |
| AN-16/o v.4: Crosstalk |
-90dB |
| AN-16/o v.4: Bit Error Rate (BER) |
10-12 |
| AN-16/o v.4: Signal to Noise |
92dB typical, A/D to D/A
Measured from AN-16/i to AN-16/o v.4 Output Module |
| AN-16/o v.4: Digital Connections |
A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1;
Neutrik EtherCon connectors |
| AN-16/o v.4: A-Net Pro16 |
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable;
uses unshielded Cat-5e UTP (or better) cable |
| AN-16/o v.4: Latency |
<0.620 msec (measured from analog input to analog output) |
| AN-16/o v.4: Power Supply |
External, DC, universal switching type |
| AN-16/o v.4: Input Voltage |
100-240 volts, 50/60Hz, 30VA |
| AN-16/o v.4: Output Voltage |
24 VDC, 0.5 amp |
| AN-16/o v.4: Plug Size |
2 mm |
| AN-16/o v.4: Power |
24 VDC, 500mA |
| AN-16SBR: A-Net Input/Output |
Four EtherCon RJ45 Connectors |
| AN-16SBR: A-Net Bridge |
One EtherCon RJ45 Connector |
| Dimensions |
AN-16/i-M: 19 x 9.25 in. (482.6 x 234.95mm); 3U high
AN-16/i: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
AN-16/o v.4: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
AN-16SBR: 1U high x 19" (482.6mm) wide x 1.25" (31.75mm) deep |
| Weight |
AN-16/i-M: 12 lbs (5.44 kg)
AN-16/i: 6.8 lbs. (3.08 kg)
AN-16/o v.4: 6.8 lbs. (3.08 kg)
AN-16SBR: 1.0 lbs(0.45 kg) |
