NEC 21.3" Grayscale Medical Diagnostic Monitor
NEC

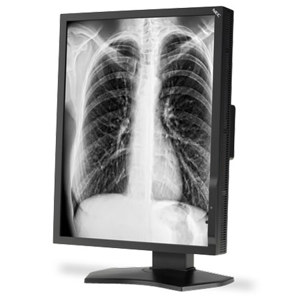

NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor MD211G3
SKU: NCMD211G3 MFR: MD211G3
What's Included
What's Included With This Item:
- NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor
- Power Cord
- DVI-D Cable
- DisplayPort Cable
- USB A to B Cable
- User Manual
- CD-ROM
- NEC 5 Years Parts and Labor Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor is designed for the demanding needs of healthcare professionals working in radiology and PACS applications. This 3-megapixel grayscale display offers an SA-SFT IPS panel for impeccable 2048 x 1536 resolution. The DVI-D and DisplayPort connectors for video and two-port USB hub enable connectivity for any type of workstation. The medical diagnostic monitor's built-in front sensor constantly monitors and maintains brightness for optimal DICOM GSDF calibration, while its four-way ergonomic stand allows users to adjust for comfort and preference accordingly. This display is pending FDA 510(k) certification for use in digital radiology applications.
- NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor
- Power Cord
- DVI-D Cable
- DisplayPort Cable
- USB A to B Cable
- User Manual
- CD-ROM
- NEC 5 Years Parts and Labor Warranty
- Superior screen performance (900:1 contrast ratio, 2048 x 1536 native resolution, 1450 cd/m2 maximum and 400cd/m2 calibrated brightness)
- Out-of-the-box calibration to the DICOM grayscale display function for luminance
- Uniformity control provides accurate imaging across the screen
- Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
- Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
| Viewable Image Size |
21.3" |
| Color Type |
Grayscale |
| Megapixels |
3MP |
| Native Resolution |
2048 x 1536 |
| Pixel Pitch |
0.21mm |
| Pixels Per Inch |
120@ native resolution |
| Brightness (typical) |
400 cd/m2 calibrated / 1450 cd/m2 max |
| Contrast Ratio (typical) |
900:1 |
| Viewing Angle |
176deg. Vert., 176deg. Hor. (88U/88D/88L/88R) @ CR>10 |
| Response Time |
13ms |
| Displayable Colors |
1024 shades of gray out of 48961 |
| Horizontal Range (Analog/Digital) |
31.5-99.4 KHz/126.3 KHz |
| Vertical Range |
50-85 Hz/30 Hz |
| Input/Output Terminals |
Digital: DVI-D, DisplayPort |
| Power Consumption |
105W |
| Power Savings Mode |
<2W |
| VESA |
100 x 100mm |
| Operating Temperature |
41-95deg.F / 5-35deg.C |
| Operating Humidity |
30-80% |
| Operating Altitude |
9842 ft. / 3000m |
| Storage Temperature |
14-140deg.F / -10-60deg.C |
| Storage Humidity |
10-85% |
| Storage Altitude |
40000 ft. / 12192m |
| Dimensions (W x H x D) |
With Stand: 18.4 x 14.9-20.8 x 9 in. / 467.8 x 378.4-528.3 x 228.6mm
Without stand: 18.4 x 14.2 x 4.1 in. / 467.3 x 360.6 x 104.1mm |
| Weight |
With Stand: 23.6 lbs./ 10.7 kg
Without stand: 16.5 lbs. / 7.5 kg |
