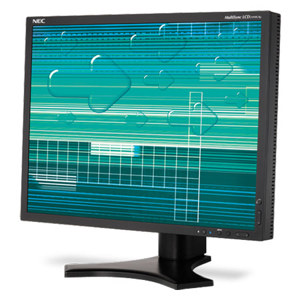

NEC MultiSync LCD2190UXP 21" Professional High-Resolution Desktop Monitor
NEC
NEC MultiSync LCD2190UXP 21" Professional High-Resolution Desktop Monitor LCD2190UXP-BK
SKU: NCLCD2190UBK MFR: LCD2190UXP-BK
What's Included
What's Included With This Item:
- NEC MultiSync LCD2190UXP 21" Professional High-Resolution Desktop Monitor
- Stand
- Power Cord
- Video Signal Cable (15-Pin Mini D-SUB Male to DVI-A)
- Video Signal Cable (DVI-D to DVI-D Cable)
- Cable Cover
- Mounting Screws (4)
- NEC 3 Years Parts & Labor Limited Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The NEC MultiSync LCD2190UXP 21" Professional High-Resolution Desktop Monitor is a high-quality, versatile monitor. It features DVI-I, DVI-D and VGA input options and boasts a resolution of 1600 x 1200. The 1000:1 contrast ratio and 300cd/m2 brightness provide clear, vivid images at viewing angles up to 178deg. The monitor features an adjustable stand with 20deg. of tilt, height adjustment and 90deg. pivot range which allows you to use the monitor in portrait mode.
The stand is easily detached should you want to attach the screen to a mount or arm. The ultra-thin bezels contribute to the monitor's aesthetics, while the unique design provides a small desktop footprint, keeping your work area free from clutter.
- NEC MultiSync LCD2190UXP 21" Professional High-Resolution Desktop Monitor
- Stand
- Power Cord
- Video Signal Cable (15-Pin Mini D-SUB Male to DVI-A)
- Video Signal Cable (DVI-D to DVI-D Cable)
- Cable Cover
- Mounting Screws (4)
- NEC 3 Years Parts & Labor Limited Warranty
- Real Time Clock has the ability to set schedules for on/off times 24/7 and can be set to warm up 30 minutes before use for optimum color representation
- Ambix3 technology provides the widest range of video compatibility by allowing three computers to be connected to a single monitor
- Integrated ergonomic handle allows for easy transport
- Supports 12-bit internal programmable lookup tables (LUTs) for calibration
- AmbiBright ambient light sensor automatically adjusts the display's brightness based on lighting conditions
- ColorComp digital uniformity correction reduces screen uniformity errors and compensates for differences in color/grayscale and luminance across the entire screen
- Quick release stand easily disengages from head for mounting applications
| Panel Technology |
PVA |
| Viewable Image Size |
21.3" |
| Aspect Ratio |
4:3 |
| Native Resolution |
1600 x 1200 |
| Pixel Pitch |
0.27mm |
| Pixels Per Inch |
94@ native resolution |
| Backlight Type |
CCFL |
| Brightness (typical) |
300cd/m2 |
| Contrast Ratio (typical) |
1000:1 |
| Viewing Angle (typical) |
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (typical) |
10ms |
| Lookup Table |
12-bit |
| Displayable Colors |
16.7 million out of 68.5 billion |
| Synchronization Range: Horizontal |
31.5-91.1/99.4 kHz (Analog/Digital) |
| Synchronization Range: Vertical |
50-85 Hz |
| Input Signal: Video |
Analog RGB 0.7 Vp-p/75 Ohms |
| Input Signal: Sync |
Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive) |
| Input Connectors |
DVI-D, DVI-I, VGA 15-pin D-sub |
| Power Consumption (typical) |
On: 60W
Power Savings Mode: 1W |
| VESA Hole Configuration |
100 x 100mm |
| Operating Temperature |
41-95deg.F / 5-35deg.C |
| Operating Humidity |
30-80% |
| Operating Altitude |
10,000 ft. / 3048m |
| Storage Temperature |
14-140deg.F / -10-60deg.C |
| Storage Humidity |
10-85% |
| Storage Altitude |
40,000 ft. / 12,192m |
| Environmental Compliance |
RoHS: Yes |
| Dimensions (WxHxD) |
With Stand: 18.3 x 16.7-22.6 x 9.7 in. / 464.8 x 424-574 x 246mm
Without Stand: 18.3 x 14.1 x 3.3 in. / 464.8 x 358 x 83mm |
| Weight |
With Stand: 23.6 lbs. / 10.7 kg
Without Stand: 17.6 lbs. / 8 kg |
