| Standards |
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.11e, 802.11w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
| Ports |
LAN, WAN |
| Switch |
Power button (on/off) |
| Buttons |
Reset |
| Cabling Type |
Category 5e or better |
| LEDs |

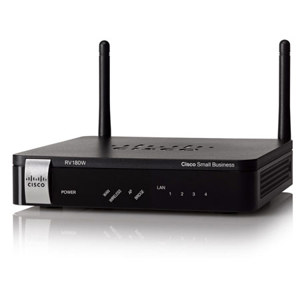

Power, WPS, WAN, wireless, LAN (ports 1-4), Additional LEDs for multifunction router, access point, bridge on RV180W |
| Operating System |
Linux |
| Network: Network Protocols 1 |
Dynamic Host Configuration Protocol (DHCP) server
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Layer 2 Tunneling Protocol (L2TP)
DNS proxy
DHCP relay agent
IGMP proxy and multicast forwarding
Rapid Spanning Tree Protocol (RSTP)
Dynamic Domain Name System (TZO, DynDNS, 3322.org) |
| Network: Network Protocols 2 |
Network Address Translation (NAT), Port Address Translation (PAT)
One-to-One NAT
Port management
Port mirroring
Software configurable DMZ to any LAN IP address
Session Initiation Protocol (SIP) Application Layer Gateways (ALG) |
| Network: LAN |
Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch |
| Network: WAN |
One (1) 10/100/1000 Mbps Gigabit WAN port |
| Network: WLAN |
Built-in high-speed 802.11n wireless access point |
| Network: Routing Protocols |
Static routing
Dynamic routing
RIP v1 and v2
Inter-VLAN routing |
| Network: Network Address Translation |
Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol |
| Network: VLAN Support |
Port-based and 802.1Q tag-based VLANs |
| Network: Number of VLANs |
4 active VLANs (3-4096 range) |
| Network: IPv6 |
Dual-stack IPv4 and IPv6
6to4 tunneling
Multicast Listener Discovery (MLD) for IPv6 (RFC2710)
Stateless address auto-configuration
DHCPv6 Server for IPv6 Clients on LAN
DHCP v6 client for WAN connectivity
Internet Control Message Protocol (ICMP) v6
Static IPv6 Routing
Dynamic IPv6 Routing with RIPng |
| Network: Network Edge (DMZ) |
Software configurable to any LAN IP address |
| Network: Layer 2 |
802.1Q-based VLANS, 4 active VLANS |
| Security: Firewall |
Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ
DoS Attacks Prevented:
SYN Flood Detect Rate (max/sec)
Echo Storm (ping pkts/sec)
ICMP Flood (ICMP pkts/sec)
Block UDP Flood
Block TCP Flood
Block Java, Cookies, Active-C, HTTP Proxy |
| Security: Access Control |
IP access control lists; MAC-based wireless access control |
| Security: Content Filtering |
Static URL blocking or keyword blocking |
| Security: Secure Management |
HTTPS, username/password complexity |
| Security: WPS |
Wi-Fi Protected Setup |
| Security: Certificate Management |
Self-signed SSL certificate, import/export certificate using Privacy-Enhanced Mail (PEM) format |
| Security: User Privileges |
2 levels of access: admin and guest |
| VPN: IPsec VPN |
10 gateway-to-gateway IPSec tunnels |
| VPN: QuickVPN |
10 Quick VPN tunnels using Cisco QuickVPN client |
| VPN: PPTP VPN |
10 PPTP tunnels for remote client access |
| VPN: Encryption |
Triple Data Encryption Standard (3DES) |
| VPN: Authentication |
MD5/SHA1 |
| VPN: VPN Pass-through |
IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of Service: QoS |
802.1p port-based priority on LAN port, application-based priority on WAN port
4 queues
Differentiated Services Code Point support (DSCP)
Class of Service (CoS)
Bandwidth Management for service prioritization |
| Quality of Service: Jumbo Frame |
Supports Jumbo Frame on Gigabit ports - at least 1536B |
| Performance: NAT Throughput |
800 Mbps |
| Performance: Concurrent Sessions |
12,000 |
| Performance: IPsec VPN Throughput |
50 Mbps |
| Configuration: Web User Interface |
Simple, browser-based configuration (HTTP/HTTPS) |
| Management: Management Protocols |
Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) |
| Management: Event Logging |
Local, syslog, email alerts |
| Management: Network Diagnostics |
Ping, Traceroute and DNS Lookup |
| Management: Upgradability |
Firmware upgradable through web browser, imported/exported configuration file |
| Management: System Time |
Supports NTP, Day Light Savings, Manual entry |
| Management: Languages |
GUI supports English, French, Italian, German, Spanish, Chinese and Japanese |
| Wireless: Radio and modulation type |
802.11b: direct sequence spread spectrum (DSSS), 802.11g: orthogonal frequency division multiplexing (OFDM), 802.11n: OFDM |
| Wireless: WLAN |
2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
| Wireless: Operating channels |
11 North America, 13 most of Europe, auto channels selection |
| Wireless: Wireless isolation |
Wireless isolation between clients |
| Wireless: External antennas |
2 fixed antennas |
| Wireless: Antenna gain in dBi |
1.8 dBi |
| Wireless: Transmit power |
802.11b: 17 dBm +/- 1.5 dBm; 802.11g: 15 dBm +/- 1.5 dBm; 802.11n: 12.5 dBm +/- 1.5 dBm |
| Wireless: Receiver sensitivity |
-87 dBm at 11 Mbps, -71 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -66 dBm at mcs15, HT40 |
| Wireless: Radio Frequency |
Single-band, works on 2.4GHz |
| Wireless: Wireless Domain Service |
Allows wireless signals to be repeated by up to 3 compatible devices |
| Wireless: Operating Modes |
Multifunction device-wireless router, access point mode with WDS, Point-to-Point Bridge mode with WDS, Point-Multi Point Bridge mode with WDS, Repeater mode with WDS |
| Wireless: Active WLAN clients |
Recommended 10 concurrent client (max 16) in wireless router mode; and 20 concurrent client (max32) in wireless Access Point mode |
| Wireless: Multiple SSIDs |
Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
| Wireless: Wireless VLAN map |
Supports SSID to VLAN mapping with wireless client isolation |
| Wireless: WLAN security |
Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
| Wireless: Wi-Fi Multimedia (WMM) |
WMM with QoS (802.1e), WMM power save (WMM-PS) |
| Power |
12V 1A |
| Certifications |
FCC class B, CE, IC, Wi-Fi |
| Operating temperature |
0deg. to 40deg.C (32deg. to 104deg.F) |
| Storage temperature |
-20deg. to 70deg.C (-4deg. to 158deg.F) |
| Operating humidity |
10 to 85 percent noncondensing |
| Storage humidity |
5 to 90 percent noncondensing |
