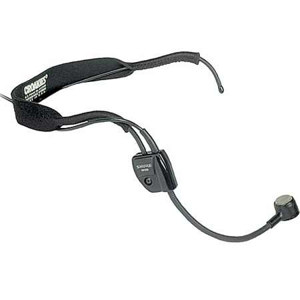

The Shure WH30TQG Cardioid Headworn Condenser Microphone is designed to suit the needs of vocalists and musicians. The microphone features an electret-condenser element with a cardioid (unidirectional) pick up pattern. The cardioid pattern effectively minimizes noise and feedback at the off-axis sections of the microphone making it suitable for use near monitor speakers.
The headset utilizes, modular, replaceable parts including a comfortable CROAKIES adjustable headband. A sturdy, adjustable gooseneck secures the microphone and a moisture-proof cartridge resists moisture from sweat or the elements. The cable features a mini TA4-female connector for connection to compatible Shure body-pack transmitters.
- Shure WH30TQG Cardioid Headworn Condenser Microphone
- Foam Windscreen
- Clothing Clip
- Shure Warranty
- Tailored frequency response enhances vocal range
- Flexible gooseneck for optimum microphone placement
- Isolation shock mount reduces vibration noise
- Low-profile, lightweight design
- Cardioid polar pattern provides maximum gain before feedback
- High sound pressure level capability
- Secure snap-on windscreen reduces "p" pops
- The RPM420 preamp requires phantom power from any 11 - 52 V source. (WH30XLR)
| Compatibility |
Shure body-pack transmitters |
| Transducer |
Condenser, electret bias |
| Polar Pattern |
Unidirectional (cardioid) |
| Frequency Response |
40Hz to 20kHz |
| Signal-to-Noise Ratio |
63.0dB @ 94dB SPL (IEC 651) |
| Output Impedance |
2400 ohms (at 1kHz) |
| Maximum Input Sound Level |
130dB |
| Output Level |
-55.5 dB (1.7 mV) (at 1 kHz; 0 dB = 1 V/Pascal) |
| Output Clipping Level |
-22 dBV (0.08 V) (at 1000 Hz) |
| Dynamic Range |
99 dB (max. SPL to A-weighted noise level) |
| Cable Connectors |
mini TA4-F |
| Output Noise (equivalent SPL) |
31 dB (typical, A-weighted) |
| Power Requirements |
5 VDC (pin 2 to pins 3 and 4) |
| Polarity |
Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 (ground) on the mini TA4F connector. |
| Operating Temperature |
-7deg. to 49deg. C (20deg. to 120deg. F) |
| Storage Temperature |
-29deg. to 74deg. C (-20deg. to 165deg. F) |
| Humidity |
0 to 95% (operating or storage) |
| Cable |
1.2 m (3.93 ft) two-conductor, shielded |
| Weight |
65 g (2.3 oz) |
