| RF Carrier Frequency Range |
Frequency G3 / 470 - 505 MHz |
| Approx. Working Range |
300 Feet (100m) |
| Overall Frequency Response |
25 Hz - 15 kHz, (±2 dB) |
| Signal-to-Noise Ratio |
Greater Than 90 dB |
| No of Channels |
Over 1400 User Selectable Frequencies |
| No of Simultaneous Systems |
Up to 20 |
| Receiver: Type of Outputs |
Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd |
| Receiver: Headphone Monitoring |
No |
| Receiver: Power Requirements |
14 - 18 Vdc (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector |
| Receiver: Display |
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. |
| Receiver: Mounting Options |
Rack / Table Top Mount 1/2 Rack Space |
| Receiver: Antenna Type |
Internal |
| Transmitter: Type of Input Connector |
Microphone Element is Attached (Screwed On) to Transmitter |
| Transmitter: Type of Microphone |

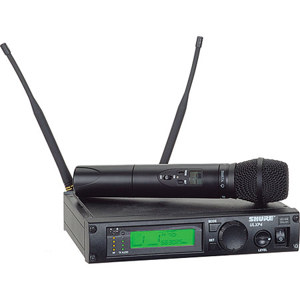

SM87A Condenser Microphone Head |
| Transmitter: Polar Pattern |
Supercardioid |
| Transmitter: Interchangeable Mic Heads |
No |
| Transmitter: Battery Type/Approx. Life |
Non-Rechargeable Type
9v Lithium Battery / 21 Hours
9v Alkaline Battery / 8 - 9 Hours
9v Carbon-Zinc Battery / 5 Hours
Rechargeable Type
9v Ni-Cad Battery / 2 Hours
9v Ni-MH Battery / 2.5 Hours |
| Transmitter: Mute Switch |
Yes |
| Transmitter: Level Control |
Yes, 25 dB Gain Adjustment Range |
| Transmitter: Antenna Type |
Remotable 1/2 Wave, Rear Mounted |
| Transmitter: Display |
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) |
| Dimensions |
Receiver: 1.72 x 8.56 x 6.88" (43 x 214 x 172mm)
Transmitter: 9.49 x 2.01" (241 x 51mm) |
| Weight |
Receiver:10.4 oz. (296 g)
Transmitter: 2 lbs., 7 oz. (1105 g) |
