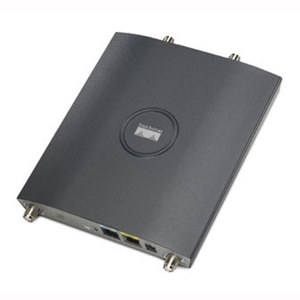

Cisco Aironet 1242AG 802.11 a/g LWAPP Wireless Access Point
Cisco Aironet 1242AG 802.11 a/g LWAPP Wireless Access Point AIR-LAP1242AG-A-K9
SKU: JFAIRLAP12 MFR: AIR-LAP1242AG-A-K9
What's Included
What's Included With This Item:
- Cisco Aironet 1242AG 802.11 a/g LWAPP Wireless Access Point
- Cable Security Bracket
- 2 x Suspended Ceiling T-Rail Clips
- Security Hasp
- 4 x (6 x 32 x 1/2") Pan Head Phillips Machine Screws
- (8 x 18 x 3/4") Pan Head Phillips Sheet Metal Screws
- 2 x No. 8 Plastic Wall Anchors
- (10 x 24) Nut
- 4 x Rubber Foot Pads
- 2 x Cable Tie Wraps
- Cisco Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Cisco Aironet 1240AG IEEE 802.11a/b/g access point delivers the versatility, high capacity, security and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses and large retail establishments that require the antenna versatility associated with connected antennas, a rugged metal enclosure and a broad operating temperature range. A second-generation dual-band access point, the Cisco Aironet 1240AG supports IEEE 802.3af Power over Ethernet (PoE). The product comes complete with all necessary mounting hardware to provide for an installation that is both secure and rugged. The mounting bracket locks the access point as well as the Ethernet and console cables in place to prevent theft and tampering.
- Cisco Aironet 1242AG 802.11 a/g LWAPP Wireless Access Point
- Cable Security Bracket
- 2 x Suspended Ceiling T-Rail Clips
- Security Hasp
- 4 x (6 x 32 x 1/2") Pan Head Phillips Machine Screws
- (8 x 18 x 3/4") Pan Head Phillips Sheet Metal Screws
- 2 x No. 8 Plastic Wall Anchors
- (10 x 24) Nut
- 4 x Rubber Foot Pads
- 2 x Cable Tie Wraps
- Cisco Warranty
| Wi-Fi Standard |
IEEE 802.11a/b/g |
| ISM Band |
Yes |
| UNII Band |
Yes |
| ISM Minimum Frequency |
2.41 GHz |
| ISM Maximum Frequency |
2.40 GHz |
| UNII Minimum Frequency |
5.15 GHz |
| UNII Maximum Frequency |
5 GHz |
| Number of Antennas |
4 |
| Antenna Gain |
2.2 dBi, 3.5 dBi |
| Antenna Type |
Diversity Dipole Antenna, Omnidirectional Antenna |
| Antenna Connector |
RP-TNC Connector |
| Indoor Antenna Range |
140 m |
| Outdoor Antenna Range |
290 m |
| Wireless Transmission Speed |
108MBps |
| Wireless Security |
WPA
WPA2 (802.11i)
Cisco message integrity check (MIC)
IEEE 802.11 WEP keys of 40 bits and 128 bits
EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
Protected EAP-Generic Token Card (PEAP-GTC)
PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAP)
EAP-Transport Layer Security (EAP-TLS)
EAP-Tunneled TLS
EAP-Subscriber Identity Module
AES-CCMP encryption (WPA2)
TKIP (WPA)
WPA TKIP
IEEE 802.11 WEP keys of 40 bits and 128 bits |
| Fast Ethernet Port |
Yes |
| Number of Network (RJ-45) Ports |
1 |
| Input Voltage |
110 V AC, 220 V AC |
| Power Source |
Power Supply |
| Form Factor |
Wall Mountable |
| Certifications & Standards |
Wi-Fi
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
NIST FIPS
Radio approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EMI and susceptibility (Class B)
ICES-003 (Canada)
Security:
IEEE 802.11i, WPA2, WPA
IEEE 802.1X
AES, TKIP
Other:
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
FCC
RSS-102 |
| Dimensions (H x D) |
1.10" x 8.50" (2.79 x 21.59cm) |
| Weight |
2 lbs / 0.90kg |
