Marshall 6.5in Camera 3GSDI Monitor without Mount

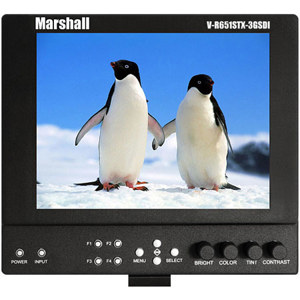

Marshall V-LCD651STX-3GSDI 6.5" High Resolution Super Transflective Portable Field / Camera-Top Monitor V-LCD651STX-3GSDI
SKU: MAR65S3GS MFR: V-LCD651STX-3GSDI
What's Included
What's Included With This Item:
- Marshall V-LCD651STX-3GSDI 6.5 inch Super Transflective Portable Field / Camera-Top Monitor
- Power Adapter
- Marshall Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The V-LCD651STX-3GSDI is the latest update to Marshall's line of Super Transflective Outdoor Monitors. This 6.5" portable field / camera-top monitor is designed specifically for outdoor applications with high ambient light. The technology minimizes surface reflection of both outdoor and indoor light, while featuring a much wider color reproduction range than typical transflective/reflective LCDs or even those with increased backlight performance.
Marshall's outdoor super-transmissive LCDs provide improved visibility by producing high-contrast images and a wider viewing angle, even under diverse and challenging lighting environments. This innovative technology dramatically boosts the efficiency of the LCD backlight's light utilization, while maintaining extended temperature ratings and low power consumption for outdoor operation.
It offers a durable and lightweight design, weighing in at only 1.3 pounds. It also features the completely digital TFT-MegaPixel high resolution LCD screen with 2.4 million pixels, 4-pin XLR power jack, and optical-grade polycarbonate screen protection. Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter.
- Marshall V-LCD651STX-3GSDI 6.5 inch Super Transflective Portable Field / Camera-Top Monitor
- Power Adapter
- Marshall Warranty
- Super Transflective 1024 x 768 LCD panel
- Durable, thin, and lightweight construction
- 650 cd/m2 brightness, 500:1 contrast ratio
- 4 user-configurable function buttons
- RGB gain and bias control
- User-adjustable panning (Pixel-to-Pixel mode)
- Signal Integrity Meter (3G-SDI input only)
- False Color On/Off
- Peaking Filter On/Off
- RGB Check Field / Field Detect
- 16:9, 4:3, Pixel-to-Pixel modes
- Variety of Markers, including user-adjustable
| Display (Viewing Area) |
6.5-inch Diagonal (132.096mm x 99.072mm) |
| Resolution (Pixels) |
1024 x 768 |
| Viewing Angle |
L/R: 160°
U/D: 140° |
| Pixel Pitch (mm) |
0.129mm(H) x 0.129mm(V) |
| Brightness (in cd/m2) |
650 |
| Contrast Ratio |
500:1 |
| Inputs |
Composite x 1, Component x 1, 3G/HD/SDI x 1 |
| Loop-through outputs |
Composite x 1, Component x 1, 3G/HD/SDI x 1 |
| Power Consumption |
1 Amp (Max) @ 12VDC (12W Max) |
| Battery Mount |
No |
| Dimensions (WxHxD) |
6.8" x 6.0" x 1.9" / 17.27 x 15.24 x 4.83 cm |
| Approx. Weight |
1.3 lbs. (0.590 kg) |
