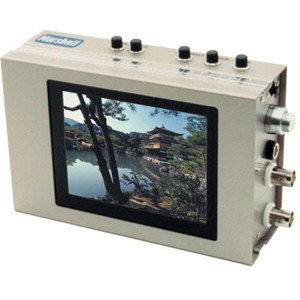

Marshall VLCD4PROL 4in Broadcast Quality LCD Monitor
Marshall 4" Broadcast Quality Color LCD Monitor V-LCD4-PRO-L
SKU: MAR4PRO MFR: V-LCD4-PRO-L
What's Included
What's Included With This Item:
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052

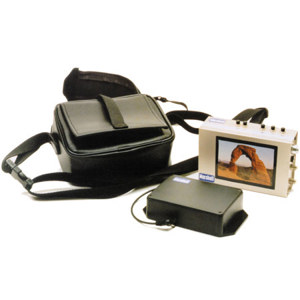

• The V-LCD4-PRO provides a broadcast quality picture in both color and black and white. Its slim profile makes it ideal for custom wall and panel monitoring in both mobile and fixed applications. Used in trucks, autos, airplanes, compact racks & panels, remote monitors and any other location where a compact, high quality picture is required. An optional battery pack and carrying case are available for field use. Rechargeable battery pack can power monitor for up to 1 hr. and 20 mins. The carrying case is made of weatherproof, padded industrial vinyl to protect the monitor from dust and moisture.
- Heavy Duty compact metal cabinet with brushed aluminum finish has 1/4" mount for ease of installation
- Switchable dual video BNC inputs
- Color, contrast and brightness control
- Wide viewing angle
- Fast response - no streaking
- 12 VDC, 500mA
- Weighs only 0.92 lbs.
| Screen Area |
4" LCD |
| Input |
2 NTSC inputs |
| Controls |
Color, Brightness, On/Off, Tint, Red & Blue Drive |
| Display Type |
Active Matrix |
| Resolution |
480 (H) x 234 (V) |
| Dot Pitch |
0.171 (W) x 0.264 (H) |
| Back |
Built-in CCFT |
| Video I/O |
Video BNC |
| Audio I/O |
na |
| Power Requirements |
12VDC, DC Power Jack 500mA |
| Weight |
.92 lbs. |
| Dimensions |
5.51"W x 3.62"H x 1.81"D |
