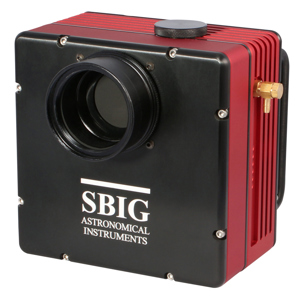

SBIG STT-8300 Monochrome CCD Camera
SBIG STT-8300 Monochrome CCD Camera STT-8300M
SKU: SBSTT8300M MFR: STT-8300M
What's Included
What's Included With This Item:
- SBIG Class 1 KAF-8300 CCD
- Rugged Machined Camera Body with Rack Handles and 2" Nosepiece
- Internal/ Even-Illumination/ Mechanical Shutter
- 15 ft USB Cable
- Telescope Interface Cable
- Universal 100-240VAC Power Supply
- CCDOPS Version 5 Camera Control Software
- Software Bisque's CCDSoftV5 Camera Control and Image Processing Software
- Custom Pelican Storm Case
- SBIG 1 Year Parts and Labor Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The SBIG STT-8300 is a Monochrome CCD Camera with user-selectable automatic image processing. These 30 second dark frames were taken at room temperature to accentuate the number of warm pixels. The first frame is unprocessed, the second frame has a medium filter and the third frame the most aggressive filter. Each shows fewer bright pixels and each has correspondingly lower noise in the image. The user can select from eight levels of filter strength to suit his needs.
When taking flat field frames of filtered images, the flat field frame must show exactly the same optical characteristics to be the most effective. If there is dust on the filter, or uneven illumination caused by the filter, this must be represented precisely as seen in the light.
- SBIG Class 1 KAF-8300 CCD
- Rugged Machined Camera Body with Rack Handles and 2" Nosepiece
- Internal/ Even-Illumination/ Mechanical Shutter
- 15 ft USB Cable
- Telescope Interface Cable
- Universal 100-240VAC Power Supply
- CCDOPS Version 5 Camera Control Software
- Software Bisque's CCDSoftV5 Camera Control and Image Processing Software
- Custom Pelican Storm Case
- SBIG 1 Year Parts and Labor Warranty
- Camera, Autoguider and Filter Wheel now fully integrated with tracking sensor in front of filters. No separate guider required
- New Micron-Precision filter wheel provides unmatched flat field accuracy for high end imaging and high precision photometry
- Lightning fast downloads < 1 second full-frame
- Superior two-stage cooling to -55 deg C ambient with air only
- Built-in frost detection
- User Selectable Internal Image Processing
- USB 2.0 and Ethernet connectivity for remote observatories
| CCD |
Kodak KAF-8300 |
| Pixel Array |
3326 x 2504 pixels |
| CCD Size |
17.96 x 13.52 mm |
| Total Pixels |
8.3 Million |
| Full Well Capacity |
25,500 e- |
| Dark Current |
0.02e-/pixel/sec at -15C |
| Antiblooming |
1000X |
| Shutter |
Mechanical, Even-illumination |
| Exposure |
0.12 to 3600 seconds, 10ms |
| Correlated Double Sampling |
Yes |
| A/D Converter |
16 bits |
| Gain |
0.37e-/ADU |
| Read Noise |
9.3e- rms |
| Binning Modes |
1 x 1, 2 x 2, 3 x 3, 9x 9, n x 1 |
| Digitization Rate |
10 Megapixels / Second |
| Full Frame Download |
<1 second |
| Max Cooling Delta |
-55deg.C |
| Temperature Regulation |
±0.1deg.C |
| Power |
12VDC at 3. 5 amps max |
| Interface |
USB 2.0 and Ethernet |
| Computer Compatibility |
Windows 32/64-bit
Mac OSX |
| Mounting |
T-Thread, 2" nosepiece |
| Backfocus |
0.69" / 17.5 mm |
| Dimensions |
Camera Body: 4.9 x 4.9 x 2.9" (124.5 x 124.5 x 73.66 mm) |
| Weight |
2.7 lbs / 1.22 kg |
