| System: Type |

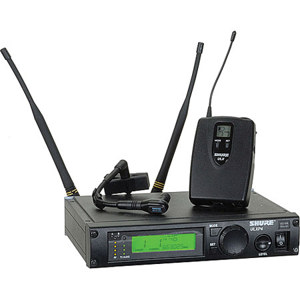

Rack/Table Top Mountable UHF Diversity Wireless Instrument System |
| System: RF Carrier Frequency Range |
M1 / 662 - 698 MHz |
| System: Approx. Working Range |
300 Feet (100m) |
| System: Overall Frequency Response |
25 Hz - 15 kHz, (±2 dB) |
| System: Signal-to-Noise Ratio |
Greater Than 90 dB |
| System: Number Of Channels |
Over 1400 User Selectable Frequencies |
| System: Number Of Simultaneous Systems |
Up to 20 |
| Receiver: Type |
ULXP4 Professional Rack/Table-Top Mount Receiver |
| Receiver: Type of Outputs |
Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd |
| Receiver: Headphone Monitoring |
No |
| Receiver: Power Requirements |
14 - 18 Vdc (negative ground), 550 mA External Power Supply - PS40, Included |
| Receiver: Display |
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning |
| Receiver: Mounting Options |
Rack / Table Top Mount 1/2 Rack Space |
| Receiver: Antenna Type |
Wire Type |
| Transmitter: Type |
ULX-1 Bodypack UHF Transmitter |
| Transmitter: Type of Input Connector |
TAF4 4-Pin Mini Connector |
| Transmitter: Type of Microphone |
WM98HC Clip-On Horn Condenser Microphone |
| Transmitter: Polar Pattern |
Cardioid |
| Transmitter: Interchangeable Mic Heads |
Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector |
| Transmitter: Battery Type/Approx. Life |
Non-Rechargeable Type: 9v Lithium Battery / 21 Hours 9v Alkaline Battery / 8 - 9 Hours 9v Carbon-Zinc Battery / 5 Hours Rechargeable Type: 9v Ni-Cad Battery / 2 Hours 9v Ni-MH Battery / 2.5 Hours |
| Transmitter: Mute Switch |
Yes |
| Transmitter: Level Control |
Yes, 25 dB Gain Adjustment Range |
| Transmitter: Antenna Type |
Remotable 1/2 Wave, Rear Mounted |
| Transmitter: Display |
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) |
| Dimensions (H x W x D) |
Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.4 x 174.75mm) Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm) |
| Weight |
Receiver: 2.8 oz (79.38 g) without Battery Transmitter: 2 lbs., 7 oz. (1105 g) |
