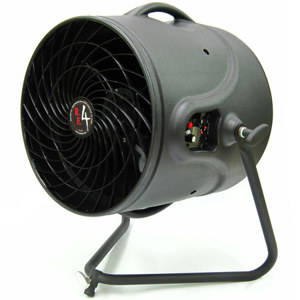

Reel EFX RE 4 Fan, 50/60Hz Frequency, 100-240 Voltage
Reel EFX RE 4 Fan RE4FAN
SKU: RFRE4F MFR: RE4FAN
What's Included
What's Included With This Item:
- One Year Parts and Labor Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Reel EFX RE 4 Fan is a universal voltage input with 100 - 240 VAC and it has an active power factor correction (0.99 pf @max load). The silent smart switching eliminates drive noise at low rpm.
- One Year Parts and Labor Warranty
- 70% more wind power output than the RE 3
- Faster-responding control system
- Active brake stops blades at 'zero speed' command
- Eco-friendly RoHs-compliant construction
- Compact - 22 x 24
- Light Weight - 54lbs.
- Built in programmable DMX 512
- Silent Solid State Variable Speed Control
- Compact C stand spud mount
| Input Ratings: Voltage |
100-240V |
| Input Ratings: Phase |
Single |
| Input Ratings: Max power |
2100 Watts |
| Input Ratings: Current |
21-7A |
| Input Ratings: Frequency |
50/60Hz |
| Motor |
2 Horsepower Baldor® Premium Efficient 3 Phase |
| Speed Control |
Solid State Variable Frequency Drive
Active Silent Smart Switching
Active Power Factor Correction |
| Full speed |
1700 rpm, 33 mph @ 1 yard |
| DMX Control |
USITT-compliant DMX 512 w/5-pin XLR |
| Mounting |
Steel floor stand with spud mount |
| Blades |
9 blades, 16" / 40.6 cm Diameter |
| Dimensions |
22" x 24" / 56 x 60.9 cm |
| Weight |
54 lbs / 24.4 kg |
| Grill |
Front and rear flow enhancing Impact, Resistant Nylon Grills |
