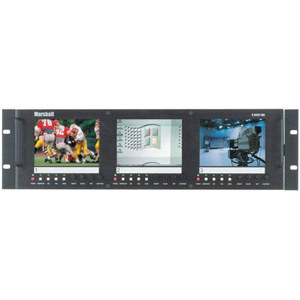

Marshall VR53P Triple 5in Color Active Matrix LCD Panel
Marshall Triple 5" Rack Mounted Full Color Active Matrix LCD Panel VR53P
SKU: MARVR53P MFR: VR53P
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Power Supply, Instruction Manual.
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
• The V-R53P is a rack mounted unit that has three independently controlled 5" active matrix LCD panels with loop through capability. These 5" panels have 960 x 234 pixels making them a true high resolution LCD panel. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle.
The unit fits into an EIA standard 19" rack, three rack spaces high. Each of the three screens has a built in color bar generator, individual front mounted selector buttons with LED's and color, tint, brightness and contrast controls.
Each screen has two composite video inputs and outputs, and a VGA input for computer monitoring.
The unit includes power supply and manual.
- Power Supply, Instruction Manual.
- High Resolution, 960 x 234 pixels, 224,640 total
- Ultra bright 350 candle luminance
- Two composite video inputs per monitor with active loop through feature and automatic 75 Ohm termination.
- Low power consumption and heat dissipation for mobile applications
- NTSC/PAL auto recognition
- Three color, self-powered tally system provided for each panel
- VGA inputs for computer multi media monitoring (640 × 480)
- Individual color, tint, brightness and contrast controls for each panel.
- Built-in Color Bar Generator.
- Unique 180 degree tilt adjustment while mounted in rack
| Screen Area |
5" LCD |
| Viewable Area |
4.75" x 2.95" each panel |
| Color Bar |
Built into unit |
| Display Type |
Active Matrix |
| Resolution |
960H x 234V |
| Dot Pitch |
0.107mm x 0.320mm |
| Inputs |
2 NTSC, 1 VGA per panel |
| Video I/O |
Two composite video inputs per monitor with loop through capability and automatic 75 Ohm termination |
| Audio I/O |
na |
| Power Requirements |
12VDC, 2.0 Amps |
| Weight |
Approx 5 lbs. |
| Dimensions |
19.125"W x 5.14"H x 3.75"D |
