Chief TPP2000 Large Tilt Truss Mount
Chief

Chief TPP2000 Large Tilt Truss Mount without Interface TPP2000B

SKU: CHTPP2000B MFR: TPP2000B
Usually ships in 3-5 days
What's Included
What's Included With This Item:
  • Chief TPP2000 Large Tilt Truss Mount
  • Interface Bracket
  • Latching Flag
  • Plate / Back
  • Plate / Face
  • Flag / Latching
  • 1/4-20 Nut / Nylock
  • 4 x 5/16-18x1/2" Screws / Cap / Hex Head
  • 4 x 5/16-18" Nut / Nylock
  • 0.25 x 0.5 x 0.032" Spacer / Nylon
  • 4 x 5/16" Washer / Flat
  • Chief Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

206.50
Qty:

Add to Wishlist

Related Categories

Tilt Wall Mount    Sanus Tilt Wall Mount    Plasma Tilt Wall Mount    Sanus Systems Tv Mount    Visionmount Wall Mount    Sanus Tv Mount    Lcd Tilt Wall Mount    Chief Ceiling Mount    Tv Mount    Display Mounting
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Chief TPP2000 Large Tilt Truss Mount is designed for flat panel TV/monitors from 42-71" or up to 150 lbs. The versatile Chief TPP-2000 accommodates a large range of truss dimensions, includes security options and provides flexible features to achieve a custom installation. Perfect for exhibit, retail and digital signage applications, it also includes Chief's Q-Latch mounting system to secure the display with a lockable latch.

What's Included With This Item

  • Chief TPP2000 Large Tilt Truss Mount
  • Interface Bracket
  • Latching Flag
  • Plate / Back
  • Plate / Face
  • Flag / Latching
  • 1/4-20 Nut / Nylock
  • 4 x 5/16-18x1/2" Screws / Cap / Hex Head
  • 4 x 5/16-18" Nut / Nylock
  • 0.25 x 0.5 x 0.032" Spacer / Nylon
  • 4 x 5/16" Washer / Flat
  • Chief Warranty

Related Products

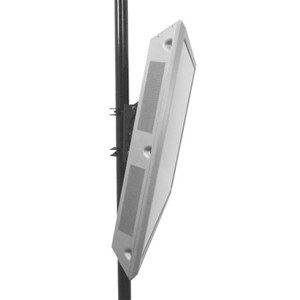

Chief TPM2000B Large Tilt Pole Mount without Interface TPM2000B
Chief TPM2000B Large Tilt Pole Mount without Interface TPM2000B
$189.60
Free Shipping
Add to wish list

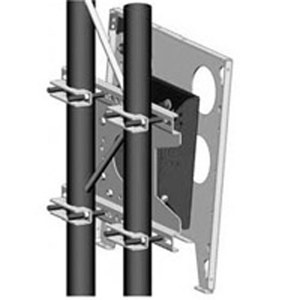

Chief TPPU Large Tilt Truss Mount TPPU
Chief TPPU Large Tilt Truss Mount TPPU
$309.95
Free Shipping
Add to wish list

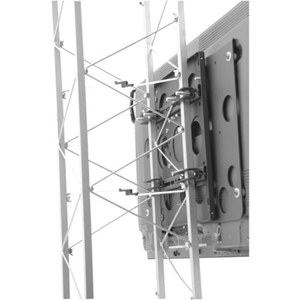

Chief TPS2000 Large Fixed Truss & Pole Mount without Interface TPS2000B
Chief TPS2000 Large Fixed Truss & Pole Mount without Interface TPS2000B
$143.50
Add to wish list

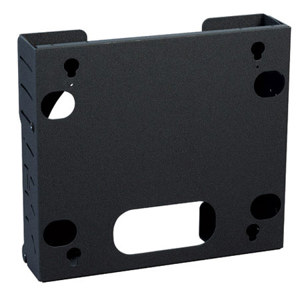

Chief PWC2000 Large Tilt Mount PWC2000
Chief PWC2000 Large Tilt Mount PWC2000
$143.50
Add to wish list

Chief TPSU Large Fixed Truss & Pole Mount TPSU
Chief TPSU Large Fixed Truss & Pole Mount TPSU
$206.50
Add to wish list

Key Features

  • 3 Pitch Adjustment Options on TPM and TPP
  • Install on vertical or horizontal truss
  • Attach displays in portrait or landscape orientation
  • TPS/TPP span most truss systems up to 14" (OD)
  • Truss/Pole clamps fit a wide variety of truss and pole dimensions. (see chart)
  • Finishing Cover accessories enhance aesthetics and cover hardware for added security
  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
  • Screen can be installed in portrait or landscape orientation
  • Integrated security allows display to be locked to mount by adding a padlock
  • Compatible with TPK clamp accessories

Technical Specs

Construction Steel
Certifications UL Listed
Minimum Depth 4.13" (104.9mm)
Mounting Pattern Compatibility 200 x 200mm - 862 x 517mm (Universal Versions)
Orientation Landscape, Portrait
Post-Installation Leveling (Roll) Yes
Typical Screen Sizes 42 - 71" (1066.8 - 1803.4mm)
Load Capacity 150 lbs (68.kg)
Dimensions (H x W x D) 16.2 x 17.1 x 4.1" (411.5 x 434.34 x 104.14mm)
