| Operating System |
Windows 7 (32-bit or 64-bit) |
| CPU |
Any Intel Core 2 or Core iX CPU. Intel or AMD single core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended). SSE2 and SSE3 instruction set supported. |
| Memory |
1 GB RAM (4 GB or more recommended) |
| Hard Disk Space |
6 GB of hard disk space is required for installation
Drive with ATA100/7,200 RPM or faster is necessary for video storage
Available HDD disc space should be twice the size of the file to be edited
RAID-0 is recommended for HD resolution editing |
| Graphics Card |
A graphics card supporting the following three is required: Higher resolution than 1024 x 768 (32-bit) , Direct3D 9.0c or later, PixelShader Model 3.0 or later
For HD editing:
512 MB or larger required, 1 GB or larger recommended
For SD editing: 256 MB or larger required, 512 MB or larger recommended |
| Sound Card |
A sound card with WDM driver support is required |
| DVD-ROM Drive |
Required for software installation
Blu-ray Disc writer, DVD-R/RW or DVD+R/RW drive is required when creating Blu-ray Discs or DVDs |
| Internet Connection |
Required for software license activation |

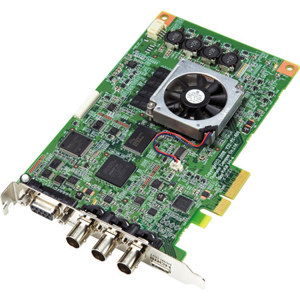

| Bus Interface |
PCI Express Rev. 1.1 x4 lane
ExpressCard/34 |
| Output Connections |
VIDEO:
3G-SDI
SMPTE-292M, SMPTE-259M-C
Analog Component (BNC: Y/Pb/Pr)
Analog Composite (BNC)
Timecode: LTC/VITC Packet (HD), D-VITC (SD)
HDMI 1 port (HDCP not supported)
Video: YCbCr4:2:2 or RGB4:4:4 (8/10-bit)
AUDIO:
HDMI LPCM 8-channel
3G-SDI embedded audio 8-channel
AES/EBU digital audio 8-channel
Balanced analog audio 4-channel
Balanced analog audio monitor 2-channel
Unbalanced analog audio monitor 2-channel |
| Video Output |
3G-SDI:
1920x1080p50/59.94
1920x1080i50/59.94
1920x1080psF23.98/24/25/29.97
1280x720p50/59.94
720x486i59.94
720x576i50
HDMI:
1920x1080p50/59.94
1920x1080i50/59.94
1280x720p50/59.94
720x480i59.94
720x576i50
720x480p59.94
720x576p50 |
| Input Connections |
Video
3G-SDI
SMPTE-292M, SMPTE-259M-C
Analog Component (BNC: Y/Pb/Pr)
Analog Composite (BNC)
Timecode: LTC/VITC Packet (HD), D-VITC (SD)
HDMI 1 port (HDCP not supported)
Video: YCbCr4:2:2 or RGB4:4:4 (8/10-bit)
AUDIO
HDMI LPCM 8-channel
3G-SDI embedded audio 8-channel
AES/EBU digital audio 8-channel
Balanced analog audio 4-channel
Balanced analog audio monitor 2-channel
Unbalanced analog audio monitor 2-channel |
| Reference Input |
BNC: Black Burst or Tri-Level Sync |
| Machine Control |
9-pin D-Sub: RS-422A x 2 (Master/Slave) |
| Power Requirements |
+12V: 1.6A, +3.3V: 0.5A |
| Regulatory Compliance |
CE, FCC CLASS B, C-Tick |
| Dimensions (L x W) |
2 Rack Units High: 3.5" / 88.9 mm |
