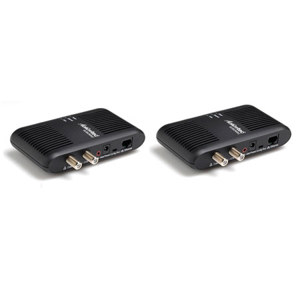

Actiontec Coax Network Adapter Kit
Actiontec Coax Network Adapter Kit ECB2500CK01
SKU: ACTECBCK01 MFR: ECB2500CK01
What's Included
What's Included With This Item:
- Actiontec 2 x Coax Network Adapters
- Quick Start Guide
- 2 x Ethernet Cables
- 2 x Coax Cables
- 2 x Two-Way Coaxial Splitters
- 2 x Power Adapters
- Actiontec Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Actiontec Coax Network Adapter Kit is a high-speed bridge that takes your coaxial network and, in conjunction with a router, delivers Ethernet networking access anywhere you have a coaxial port. Most of the leading broadband companies rely on coaxial networks in the home (network over a cable connection) because it is very fast and extremely reliable. It uses the latest technology to provide you with flawless performance for your most demanding connected devices at an aggressive price point.
It delivers a strong and stable connection (up to 270Mbps) that will allow you to experience silky-smooth streaming HD video without the lags and buffering associated with lower performance connections. The product supports QOS to manage your bandwidth, ensuring critical applications like video streaming get allocated the priority bandwidth.
- Actiontec 2 x Coax Network Adapters
- Quick Start Guide
- 2 x Ethernet Cables
- 2 x Coax Cables
- 2 x Two-Way Coaxial Splitters
- 2 x Power Adapters
- Actiontec Warranty
- Fast: Enables up to 270 Mbps data rate at coaxial connection
- Secure: Hardware encrypted with password option
- Easy Setup: Plug and play setup; coexists with most broadband services
| RF Interface |
Connector: F-type
Impedance: 75 Ohms |
| Network Center Frequency Range |
1150 - 1500 MHz |
| Network Frequency Range |
1125 - 1525 MHz |
| Max Transit Power |
+3 dBm (52 dBmV) |
| Link Conditions |
Min Attenuation (> 250 Mbps): 10 dB min
Max Attenuation (>30 Mbps): 68 dB max
Max Attenuation (> 250 Mbps): 50 dB max |
| Network Size |
15 Devices (including NC) |
| Max Physical Data Rate |
Up to 270 Mbps |
| Coax Application Data Rate |
Up to 175 Mbps bi-directional combined |
| Ethernet Interface |
Connector Type: RJ45
Configuration: One Port
Protocol: IEEE 802.3x, 100M Fast Ethernet |
| MoCA Version |
MoCA 1.1 |
| Link Delay |
Typical: 3.5 ms
Max: 9 ms |
| Power Requirement |
Power Consumption: < 5 Watts
Input Range: 100-240VAC, 50/60Hz |
| Ambient Temperature Range |
0 - 40 degrees Celsius |
| Storage Temperature Range |
-5 - 65 degrees Celsius |
| Operating Humidity |
10% - 95% Non-condensing |
