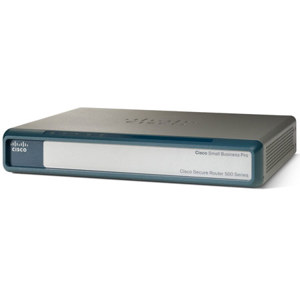

Cisco SR 520-T1 Secure Router
Cisco SR 520-T1 Secure Router SR520-T1-K9
SKU: CISR520T1K9 MFR: SR520-T1-K9
What's Included
What's Included With This Item:
- Cisco SR 520-T1 Secure Router
- Power Supply
- Software CD
- Quick Start Guide
- Cisco Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Cisco SR 520-T1 Secure Router is ideal for securely connecting your business to customers, partners and suppliers. Its built-in advanced security and VPN support lets you do business over the internet with confidence and peace of mind. If you are already using the Cisco Smart Business Communications System, you can strengthen security by adding the Cisco SR 520-T1 Secure Router to the existing system.
The intrusion prevention and content filtering and the intelligent network quality of service let you prioritize voice and data network traffic to improve network performance. The Cisco SR 520-T1 enables highly secure VPN access to office applications and files. It supports secure T1 WAN data connectivity in both, data-only deployments and as a part of the Cisco Smart Business Communications System.
- Cisco SR 520-T1 Secure Router
- Power Supply
- Software CD
- Quick Start Guide
- Cisco Warranty
- T1 Data Connectivity: The SR 520-T1 supports the symmetrical, high-bandwidth connections over a T1 line that many small businesses require
- Strong Security Features: Optional strong security features for the SR 520-T1 include a firewall that inspects traffic at the application layer to help protect the network from unauthorized users
- Dual 10/100 Fast Ethernet Ports: The SR 520-T1 provides dependable connectivity for LAN switches in the office. A single port can also serve as a network edge (DMZ) to add an additional layer of security to your network
- Simplified Deployment and Management: The SR 520-T1 configuration utility streamlines setup of the T1 connection. Cisco configuration assistant enables you to fine-tune security settings and manage the Cisco T1 as part of a larger system, such as the Cisco Smart Business Communications System
- Secure Connectivity for Your Business: The SR 520-T1 provides simple, secure, T1 data connectivity for small businesses. As part of the Cisco Small Business Pro series, the SR 520-T1 is easy to deploy and manage
| Routing Protocols |
Static Routing |
| Recommended Number of Users |
Up to 50 |
| Security |
10 SSL VPN Tunnels
10 IPsec VPN Tunnels
Hardware-accelerated Triple Data Encryption Standard and Advanced Encryption Standard
Stateful Packet Inspection Firewall
Intrusion Prevention System
Content Filtering
Network Address Translation
Secure HTTP
Access Control Lists |
| Management Features |
Cisco Configuration Assistant 2.1
Cisco SR 520-T1 Secure Router Configuration Utility |
| Default DRAM |
256 MB |
| Maximum DRAM |
256 MB |
| Default Flash Memory |
128 MB |
| Maximum Flash Memory |
128 MB |
| LAN |
Dual 10 / 100 Fast Ethernet Ports for LAN and/or DMZ |
| Console Port |
RJ-45 (for password recovery) |
| LEDs |
System Status: OK
T1 Status: CD and AI
LAN Status: LAN 0 and 1 |
| External Power Supply |
100 to 240 VAC |
| Frequency |
50 to 60 Hz |
| Maximum Output Power |
30 W |
| Output Voltage |
12V DC |
| Approvals and Compliance |
FCC Part 68 (TIA-968), U.S. Telecom Requirements
CS-03, Canadian Telecom Requirements
IEC 60950-1
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
AS / NZ 60950.1
EN 300386
EN 55024 (CISPR24)
EN 50082-1
EN 61000-3-2
CFR 47 Part 15, Class A
ICES-003 Class A
EN 55022 Class A
CISPR22 Class A
AS / NZ CISPR Class A
VCCI Class A
EN 300386 Class A
EN 61000-3-2
EN 61000-3-3 |
| Environmental Requirements |
Nonoperating Temperature: -4 to 149Deg.F (-20 to 65Deg.C)
Nonoperating Humidity: 5 to 95% Relative Humidity (noncondensing)
Nonoperating Altitude: 0 to 15,000 ft (0 to 4570 m)
Operating Temperature: 32 to 104Deg.F (0 to 40Deg.C)
Operating Humidity: 10 to 85% Relative Humidity (noncondensing)
Operating Altitude: 0 to 10,000 ft (0 to 3000 m) |
| Dimension (D x W x H) |
8.13 x 10.31 x 1.72" (207 x 262 x 43.7 mm) |
| Weight |
3.38 lb (1.36 kg) |
