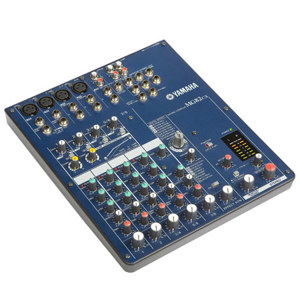

Yamaha MG82CX 8-Channel Stereo Mixer with 2 Mono Inputs and 3 Stereo Inputs
Yamaha MG82CX 8-Channel Stereo Mixer
SKU: YMMG82CX MFR: MG82CX
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Yamaha MG82CX 8-Channel Stereo Mixer with 2 Mono Inputs and 3 Stereo Inputs is an 8 channel audio mixer designed to provide the mixing capabilities necessary for mixing a few stereo and mono audio sources. The MG82 CX features a total of 8 line level inputs via 1/4" TRS phone connections and 4 XLR male microphone inputs. An internal effects processor provides up to 16 user selectable presets including reverb, delay, chorus, flanger, distortion and more. In addition, a built-in compressor is featured on all mono inputs for dynamics control over instruments and vocals.
Line level inputs are mono on channels 1 and 2, channels 3/4, 5/6 and 7/8 feature stereo-paired 1/4" TRS phone inputs for stereo sources such as keyboards and play-back devices. XLR microphone inputs are located on the first 4 inputs, which provide +48V phantom power to condenser microphones. Inserts on channels 1 and 2 provide routing to and from external signal processors. The compact, lightweight design allows easy transport making the MG82 CX suitable for sound reinforcement as well as project recording applications.
- Stereo and Mono Channels: the MG82 CX features a total of 8 line inputs and 4 microphone inputs. Channels 1 and 2 feature mono 1/4" line inputs, while the remaining 4 input channels feature stereo paired 1/4" TRS phone inputs for keyboards and playback devices
- Internal Effects: Up to 16 effects presets including reverb, chorus, flange and delay are included
- Built-In Compressor: The MG102 features a built in compressor with a preset ratio and threshold for vocals, instruments, etc
- Quality Mic Preamps: The Yamaha MG series mixers feature high quality microphone preamps that provide high headroom and gain with low noise floor
- Insert Connections: Mono channels 1 and 2 feature 1/4" TRS insert connections for routing signal to and from external signal processing gear
| Total No of Inputs |
8 |
| Mic/Line Inputs |
4 - XLR 3-pin male
8 - 1/4" Phone
2 - Stereo RCA Phono |
| Stereo Line Inputs |
3 - Stereo Paired 1/4" TRS Phone channels 3/4, 5/6, 7/8 |
| In-Line Inputs/Returns |
No |
| AUX Sends |
2 - 1/4" TRS Phone (1 Pre, 2 Post) |
| AUX Returns |
1 - Stereo 1/4" TRS Phone |
| Inserts |
2 - 1/4" TRS Phone channels 1 - 2 |
| BUS (Group) Outputs |
Stereo Out Only
1 - Stereo 1/4" TRS Phone |
| 2 Trk Master I/O |
2 TRK In: Stereo L/R RCA
REC Out: Stereo L/R RCA |
| ALT I/O |
No |
| Monitor Outputs |
Control Room: L/R 1/4" TRS Phone
Phone: 1 - Stereo 1/4" TRS Phone |
| EQ Section |
Mono Channels -15dB Max.
High 10kHz (Shelving)
Mid 2.5kHz (Peaking)
Low 100Hz (Shelving)
Stereo Channels -15dB Max.
High 10kHz (Shelving)
Mid 2.5kHz (Peaking)
Low 100Hz (Shelving) |
| Solo/Mute |
No |
| Channel Level Control |
Rotary POTS |
| Trim/Gain Control |
44dB Variable |
| Phantom Power |
+ 48V |
| Metering |
12 Segment Peak Meters |
| Frequency Response |
20Hz to 20kHz at +4dB 600 ohms (ST OUT) |
| Signal-to-Noise Ratio |
-128dB 20Hz - 20kHz
Rs: 150 ohms, Input Gain: Maximum, Input sensitivity: -60dB |
| Total Harmonic Distortion (THD) |
Less than 0.1 % (THD+N)
20Hz - 20kHz at +14dB 600 ohms (ST OUT) |
| Power Supply |
19W 120 V/60 Hz |
| Dimensions (WxHxD) |
9.88x2.55x11.42" / 251x65x290mm |
| Weight |
4.0 lbs / 1.81kg |
