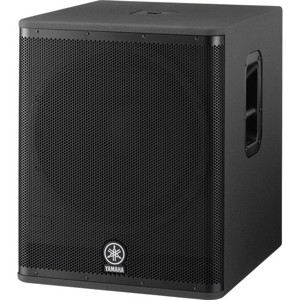

Yamaha DSR118W 18" 800W Active Subwoofer
Yamaha DSR118W 18" 800W Active Subwoofer
SKU: YMDSR118W MFR: DSR118W
What's Included
What's Included With This Item:
- Yamaha DSR118W 18" 800W Active Subwoofer
- Power Cord
- Yamaha Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Yamaha DSR118W is a professional-quality active subwoofer, ideal for bass reinforcement of full-range DSR-series loudspeakers. The rugged bass-reflex cabinet houses an 18" ferrite cone woofer to provide frequencies as low as 40Hz. An internal Class-D amplifier provides 800W of output power for a strong, distortion-free performance. Parallel XLR inputs and outputs let you connect sound sources and daisy-chain multiple speakers and subwoofers.
Extensive protection circuitry prevents damage from DC faults, clipping, overheating and over voltage. The sub has a standard 35mm pole socket for mounting a speaker on top, while integrated carrying handles provide easy transport.
- Yamaha DSR118W 18" 800W Active Subwoofer
- Power Cord
- Yamaha Warranty
- Ideal for bass reinforcement of full-range DSR-series loudspeakers
- The rugged bass-reflex cabinet houses an 18" ferrite cone woofer to provide frequencies as low as 40Hz. The driver is custom-designed for premium quality
- Internal Class-D amplifier provides 800W of output power for a strong, distortion-free performance
- PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation
- Parallel XLR inputs and outputs let you connect sound sources and daisy-chain multiple speakers and subwoofers
- Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply and driver from DC faults, clipping, overheating and over voltage to ensure reliable operation under the most severe conditions
- A standard 35mm pole socket is built-in for mounting a speaker on top of the subwoofer. Integrated carrying handles provide easy transport
| Woofer Type |
Active, Bass-Reflex |
| Frequency Response |
40-130Hz (-10dB)
50-110Hz (-3dB) |
| Amplifier |
Class-D, 800W |
| Maximum Sound Pressure Level (SPL) |
132dB |
| Input Sensitivity |
0dBu |
| Input Level |
+24dBu |
| Input Impedance |
10 kOhms |
| Low Frequency Driver |
18" Ferrite Cone Woofer with 3" Voice Coil |
| Enclosure Material |
Grille: 16-Gauge Matte Black Powder Coated Perforated Steel |
| Connectors |
2 x XLR Inputs
2 x XLR Thru Outputs
1 x Locking AC Power Input |
| Controls |
1 x Level Control
1 x Polarity Switch
1 x Front LED Disable Switch
1 x Power Switch |
| Indicators |
1 x Red Peak LED
1 x Red Limit LED
1 x Red Protection LED
1 x Green Power LED
1 x White Front LED |
| Protection |
Power Switch On/Off Mute
DC-Fault
Output Limit
Clip Limit
Overheating
Overcurrent
Over Voltage |
| Power |
PFC Switching Mode Power Supply |
| Consumption |
100W (1/8 Power) |
| Cooling |
Natural Convection |
| Mounting |
1 x Standard 35mm Pole Socket (Top)
2 x Metal Handles (L/R) |
| Dimensions (WxHxD) |
520x638x584mm / 20.4x25.1x22.9" |
| Weight |
42.0kg / 92.5lbs |
