Premier Mounts MM-BE286 2 Triple Monitor Curved Bows
Premier Mounts
Premier Mounts MM-BE286 2 Triple Monitor Curved Bows
SKU: PRMMMBE286 MFR: MM-BE286
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 2 - 3 Business days from date of order.
What's Included
What's Included With This Item:
- Premier Mounts MM-BE286 2 Triple Monitor Curved Bows
- 28" Pole with Extrusion Base
- Mounting Hardware
- Premier Mounts Lifetime Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052

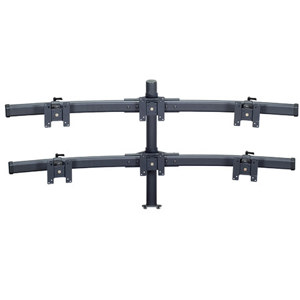

The Premier Mounts MM-BE286 2 Triple Monitor Curved Bows on 28" Pole with Extrusion Base is an ideal solution for mounting up to 6 (10 to 24") screens on to a single display unit without sacrificing valuable desktop space. The unit features 2 curved mounting bows on a 28" pole. Each bow has 3 standard VESA (75 x 75, 100 x 100mm) mounting heads for attaching the monitors. Moreover, the position of each curved mounting bow can be adjusted along the length of the pole and fixed with the set screws. The mounting heads offer 90deg. omnidirectional movement and 360deg. rotation, so you can adjust the orientation of the monitors to set the optimum viewing angle. In addition, you can adjust the position of the mounting heads laterally.
The extrusion base of the 28" (71.12 cm) pole is designed for extrusion tracks or rails typically used in monitoring consoles. It fits on to standard tracks and is a great mounting option for upgrading consoles with traditional monitors to flat-panel consoles. Furthermore, the integrated cable management system organizes and protects the monitor cables and also gives a clean finish to the installation.
- Premier Mounts MM-BE286 2 Triple Monitor Curved Bows
- 28" Pole with Extrusion Base
- Mounting Hardware
- Premier Mounts Lifetime Warranty
- Designed for extrusion tracks typically used in monitoring consoles at central stations and control centers
- Mounts up to 6 monitors on to a single display unit for optimal space utilization
- Extrusion base can be installed on 1.5" on center T-slot channel or single T-slot channel
- Each of the 2 mounting bows features 3 mounting heads
- Lateral shift for horizontally adjusting the position of the mounting heads along the bows
- 90deg. omnidirectional movement and 360deg. rotation to achieve the optimum viewing angle
- 75 x 75, 100 x 100mm standard VESA mounting heads
- Keyhole mounting slots for easily attaching displays to the mounting heads
- Set screws allow the mounting bows to be securely positioned anywhere along the 28" pole
- Cable management system on the bow protects and organizes the wires for a clean finish
| Display Range |
10 to 24" (25 to 61 cm) |
| Viewing Adjustments |
Tilt: 90deg.
Pivot: 90deg.
Rotate: 360deg. |
| Mounting Pattern Type |
Fixed |
| Mounting Pattern |
Standard VESA 75 x 75, 100 x 100 mm |
| Pole Diameter |
2" (51 mm) |
| Length |
28" (71.12 cm) |
