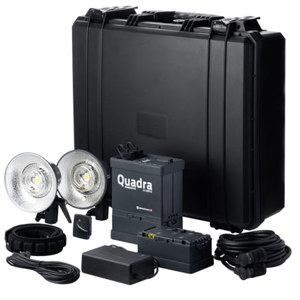

Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads)
Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads)
SKU: EL104001 MFR: EL 10400.1
What's Included
What's Included With This Item:
- Elinchrom Quadra Hybrid RX
- RQ Lithium-Ion Battery
- EL-Skyport Transmitter SPEED
- 2 x RQ Hybrid Action Head
- 2 x Quadra Flashhead Cable
- RQ Set Case
- Battery Box
- Charger
- Sync Cord and Shoulder Strap
- Elinchrom Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads) is a compact portable 400Ws battery flash system for studio and outdoors use. Complete with fast recycling times, wireless trigger and remote options via the EL-Skyport, the Quadra Hybrid RX really are a perfect system for anyone who likes to work away from the mains. With the Lithium-Ion battery, the whole pack only weighs 2 kg and allows you -320 flashes at full power while being an incredible 15x8.5x18cm.
Latest firmware manages flash power consistency, remote power variation, LED modeling lamp and even more RX features than are currently available on any other unit. The Action heads in these sets are ideal for sport photography, fashion photography and Action Freezing photography.
- Elinchrom Quadra Hybrid RX
- RQ Lithium-Ion Battery
- EL-Skyport Transmitter SPEED
- 2 x RQ Hybrid Action Head
- 2 x Quadra Flashhead Cable
- RQ Set Case
- Battery Box
- Charger
- Sync Cord and Shoulder Strap
- Elinchrom Warranty
- EL-Skyport (built-in): Radio remote control of power settings and flash triggering
- Unique control: full control over the units with the EL-skyport app for apple devices via the optional Wi-Fi module or with the EL-skyport software via the optional USB transceiver RX
- Power Options: Two outlets - 2: 1 ratio. single high power channel and single superfast channel
- Versatility: pre-flash detector system to enable the use of Quadra Hybrid with speedlights
- Security: 5V sync socket for maximum protection of digital cameras and secured battery
- Stability: power auto-Dump & power controlled
- Family: With the EL-Reflector adapter all accessories and Rotalux softboxes up to 135 cm can be used
| Energy (Ws/J) |
400 |
| Power distribution |
Asymmetrical 2:1 ratio |
| F-Stop (1m, 100 ISO, reflector 48deg.) |
At 100%: 64.5 |
| Power range f-stop |
6.6 |
| Power range Ws |
100%: 25 - 400 - 66%
Output A: 17 - 268 - 33%
Output B: 8.2 - 132 |
| Power range |
1/1 - 1/32 |
| Power increments in f-stop |
1/10 to programmable 5/10 - 1/1 |
| Flash duration |
t0.5 at max. power in s: RQ S / A head
Output A (100%): 1/1200 / 1/2800
Output B (33%): 1/3000 / 1/5700
Output A+B (100%): 1/1500 / 1/4000 |
| Recycling, FAST in s |
Output A: 0.36 - 2.0
Output B: 0.17 - 0.73 |
| Recycling, SLOW in s |
Output A: 0.86 - 6.6
Output B: 0.33 - 2.3 |
| Color temperature in deg.K at max. power |
5500 |
| Auto Power Dumping |
Adjusts power settings automatically |
| Power stability |
± 0.5% |
| Modeling lamp mode |
On, off, programmable timer and continuous |
| Flashes out of one charged battery |
At min. power, SLOW / FAST recycle: 4800 / 4200
At max. power, SLOW / FAST recycle: 320 / 280 |
| Battery |
Lithium-Ion 16.8 V / 3.3 Ah |
| Quick charger: approx. recharge time |
1 h 30 min |
| EL-Skyport (Built-in) |
Integrated transceiver, 8 Frequency Channels and 4 Groups with full RX features |
| Sync voltage |
5 V (compatible with all cameras |
| Sync socket |
3.5 mm Jack |
| Dimensions |
Ranger Quadra Hybrid including Battery box: 15x8.5x18.5cm / 5.90x3.34x7.28" |
| Weight |
2kg / 4.40lbs |
