Kramer Electronics PT-572HDCP+ Twisted Pair Receiver
Kramer Electronics PT-572HDCP+ DVI Over Twisted Pair Receiver PT-572HDCP+
SKU: VDKRPT572HDC MFR: PT-572HDCP+
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Kramer Electronics PT-572HDCP+ Twisted Pair Receiver
- Power Supply
- Mounting Bracket
- Kramer Electronics Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052

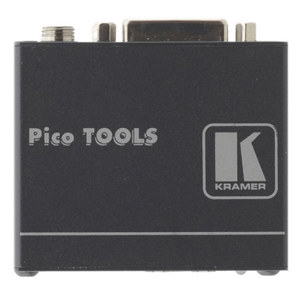

The Kramer Electronics DVI over Twisted Pair Receiver is used to receive DVI signals sent over a twisted pair cable. Supporting a maximum data rate of up to 1.65Gbps, the receiver accepts input signals up to UXGA resolutions. Converting the twisted pair signal back to DVI, the receiver offers a maximum range of up to 330' (100m) for SXGA or up to 256' (80m) for UXGA resolutions using the shielded BC-DGKat723 cable.
With EDID PassThru, the Twisted Pair Receiver passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display. The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270' (90m) of each other. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor.
- Kramer Electronics PT-572HDCP+ Twisted Pair Receiver
- Power Supply
- Mounting Bracket
- Kramer Electronics Warranty
- Receives DVI signals sent over a twisted pair cable
- Supports a maximum data rate of up to 1.65Gbps
- Supports input signals up to UXGA resolutions
- Converts the twisted pair signal to DVI
- Maximum range of up to 330' (100m) for SXGA or up to 256' (80m) for UXGA resolutions using the shielded BC-DGKat723 cable
- EDID PassThru
- Passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display
- Requires a 12V DC power supply (included) for operation
- Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270' (90m) of each other
- 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
- HDTV compatible
- HDCP compliant
| Input |
1 RJ-45 connector |
| Output |
1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector, DDC signal 5Vpp (TTL) |
| Bandwidth |
Supports up to 1.65Gbps |
| Power Source |
12V DC, 250mA |
| Dimensions (W x D x H) |
2.4 x 2.1 x 1" (6.2 x 5.2 x 2.4 cm) |
| Weight |
0.3 lb (0.14 kg) |
