JVC GY-HM710 ProHD Shoulder Camcorder, Canon 14x Lens
JVC

JVC GY-HM710 ProHD Compact Shoulder Camcorder GY-HM710U

SKU: JVGYHM710U MFR: GY-HM710U
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$5,595.00
Free Shipping (USA)
Qty:

Add to Wishlist

Protect your investment

Related Categories

Jvc Compact Camcorder    Jvc 3ccd Camcorder    Jvc Gy    Jvc Camcorder Lenses    Jvc Lens    Camcorder Lens    Jvc Lenses    Jvc Camcorder    Solid State Camcorder    State Camcorder

About the JVC GY-HM710

JVC's versatile GY-HM710 ProHD Compact Shoulder Camcorder with Canon 14x Lens is a professional ENG camera that uses the same 3x 1/3" CCD sensors and compact shoulder-mount form factor as the GY-HM790. Designed for professional field-recording applications such as newsgathering, event videography, documentary filmmaking and digital cinema, the GY-HM710 comes equipped with a Canon 14x zoom and is capable of capturing full-HD 1080i/p video as native MP4 or MOV files.

Standard-definition AVI and MOV file formats (480i) can also be directly recorded for legacy SD applications. All this makes the camera tops in its ability to output ready-to-edit files for such NLEs as Final Cut Pro and Adobe Premiere. If you don't particularly need studio-control options, the HM710 is an excellent, economical camcorder choice that includes all the features you've come to expect from a professional camera.

There are XLR inputs with manual control, HD/SD-SDI output for monitoring or recording to an external unit and 1920 x 1080 recording at 24p, 30p and 60i to dual hot-swappable SDHC cards (media sold separately). In addition, the ProHD camcorder provides some nice surprises. The supplied interchangeable lens is a high-definition Canon 14x zoom that features minimal chromatic aberration and starts at 4.4mm (equivalent to 32mm in the 35mm world) on the wide end.

The camera features a generous 20-second pre-record cache, preventing missed shots - this is especially helpful for projects that thrive on spontaneity, such as special events and documentaries. Its 35 Mb/s maximum bit rate and 4:2:2 HD-SDI output produce files and signals that can withstand postproduction processes well. And with the GY-HM710's convenient native file recording options, your shoot-to-edit workflow couldn't be simpler.

JVC GY-HM710 Includes

  • JVC GY-HM710 ProHD Compact Shoulder Camcorder
  • Canon 14x Lens
  • Microphone
  • JVC 1 Year Labor and 2 Years Parts Warranty

Summary of Customer Reviews

(1)
Customers most agreed on the following attributes:
Pros:
Easy to use (1) , Great picture quality (1) , Great sound (1) , Large clear LCD (1)
Best Uses:
HD shooting (1)
Reviewer Profile:
Pro videographer (1)

JVC GY-HM710 Features

  • The GY-HM710 utilizes three precisely aligned 1/3-inch progressive scan full HD CCDs-one each for red, green and blue primary color-and outputs full resolution in both 1080 interlace and progressive
  • Upgraded 35Mbps MPEG2 Encoder: Drawing on its long experience of developing dedicated encoders for the broadcasting industry, JVC has equipped the GY-HM710U with a powerful MPEG2 encoder capable of compressing full 1920 x 1080 HD video at up to 35 Mbps
  • Standard Definition Recording Capability: Responding to the needs of the industry, the GY-HM710U, in addition to its capability as an HD recorder, offers Standard Definition recording for maximum flexibility
  • High performance Canon HD lens: The GY-HM710U includes a detachable 14x Canon KT14x4.4KRSJ HD lens based on the superb optics found in more expensive HD lenses. Its superior MTF provides higher resolution than typical "stock" lenses
  • Secure Digital High Capacity (SDHC) memory card recording: The GY-HM710 records on widely available SDHC Class 6 or Class 10 memory cards, presently available in capacities up to 32GB
  • It incorporates JVC's Native File Recording technology that stores video in the ready-to-edit file formats used by Apple's Final Cut Pro, Adobe Premiere and other popular non-linear editing systems
  • Pre Rec (Retro Cache) Start Mode-No more missed shots: In this mode, the GY-HM710 continually records up to 20 seconds in cache memory. When the trigger is pressed, the live signal is appended to the cache recording, giving the shooter a head start in getting the shot
  • The ProHD Clip Manager for both Mac and Windows makes it easy to manage MP4 clips on the GY-HM710U's memory cards from your computer. With a few clicks of the mouse you can copy, move or delete clips, preview clip content, as well as view and edit clip metadata
  • The GY-HM710 is equipped with a new, rugged high resolution viewfinder based on a new .45-inch 1.22 million pixel Liquid Crystal on Silicon (LCOS) panel (852 x 480 x 3). This new all-digital viewfinder displays images with more than 5 times the resolution of typical color viewfinders
  • Spot Exposure Meter: When shooting very high contrast scenes, the Spot Meter can be a very useful tool, letting the videographer monitor the dynamic range of an image on the LCD/VF and adjust the exposure of an object in the frame
  • Patented "FOCUS ASSIST" function: Achieving exact focus with HD signals is critical. JVC's Focus Assist turns focusing into a fast, easy and accurate process. When Focus Assist is activated, the picture in the viewfinder becomes monochrome and all objects which are in focus take on a colored edge
  • HD/SD SDI, IEEE1394 Output: For live broadcast applications, or for monitoring, the GY-HM710 provides an uncompressed, 4:2:2 full HD or down converted SD signal via its HD/SD SDI connector
  • Remote Camera Control Connector: A 6-pin remote connector provides a TTL interface to an optional JVC RM-LP25U or RM-LP55U control unit. Extensive control options are available including shading, paint, iris, gamma level, knee, gain, shutter and black level. Functions vary with each unit

JVC GY-HM710 Specifications

Image sensor 1/3" Progressive scan 3CCD
Lens Canon F1.6, 14x, f=4.4-61.6mm (35mm conversion:32 to 448mm)
Lens mount 1/3" bayonet system
Filter diameter 82mm Hood Unit / 72mm Lens Barrel
Shutter speed 1/6 to 1/10000, EEI
Gain 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC
ND filter OFF, +1/4 ND, +1/16 ND
Minimum illumination 1.25lx (typical) (1920x1080 mode, F1.4, +18dB, with 8-frame accumulation)
Synchronizing system Internal sync: built-in SSG
LCD display 4.3" LCD, 800 x 480 (WVGA, 410,000 pixels)
Viewfinder 0.45" LCOS, 1,226,000 pixels (852 x 480 x 3)
Recording media SDHC memory card (Class 6 or Class 10), 2 slots
Video recording Video codec: MPEG-2 Long GOP(HD), DV(SD)
File format Quicktime for Final Cut Pro(HD/SD)/mp4 file format(HD) Note1/avi file format(SD)
HD Recording mode HQ mode: VBR, 35Mbps (1920 x 1080i 60, p24/30) MPEG-2 MP at HL
SP mode: CBR, 25Mbps (1440 x 1080i/60) MPEG-2 MP at H-14;
SD Recording mode DV compression 4:1:1, 8-bit, 25Mbps
Video Frame Rate NTSC setting HD HQ mode: 1920x1080/59.94i, 29.97p, 23.98p, 1440x1080/59.94i (MOV only)
HD SP mode: 1440x1080/59.94i
NTSC SD mode: 480/59.94i
Audio recording HD: Linear PCM 2ch, 48 kHz / 16 bit, SD: Linear PCM 2ch, 48 kHz / 16 bit
Video output Analog Composite output (downconverted 480i, 4:3/16:9): 1.0V (p-p), 75-ohms, BNC (unbalanced; switchable from analog component Y output)
Analog Component output (downconverted 480i; 1080i): BNC x3 (unbalanced)
Y: 1.0V (p-p), 75-ohms Pb & Pr: 0.7V (p-p) 75-ohms

SDI output (downconverted 480i/1080i: embedded audio) BNC (unbalanced)
HD-SDI: Compliant with SMPTE 292M / SD-SDI: Compliant with SMPTE 259M
Audio input [MIC] -60 dBu, 3k-ohms, XLR (balanced), +48V output (phantom power supply)
[LINE] +4 dBu, 10k-ohms, XLR (balanced)
Audio output -8±1 dBu (audio signal process output at +20 dB), 1k-ohms, RCA X 2 (unbalanced)
Headphone Dia: 3.5mm mini jack (stereo) x2
IEEE1394 output 4 pin
Remote connector DIN 6 pin
USB Mini USB-B type, USB2.0, mini B, slave function (mass storage class) only
Power DC 12V (11-17V)
Power consumption Approx. 24W (Recording mode with standard lens and LCD monitor in use)
Operating temperature 0 deg to 40 deg (32 deg F to 104 deg F)
Storage temperature -20 deg to 60 deg (-4 deg F to 140 deg F)
Operating humidity 30% to 80% RH
Storage humidity Under 85%
Weight Approx. 3.4kg (7.5 lbs.) (Including KT14x4.4 lens, viewfinder, microphone)

Title |  Brand |  Price |  Popularity |  Favourites
Popularity |  Our Choices |  All-Round Favourites |  Title
Title |  Brand |  Price |  Popularity |  Best Sellers

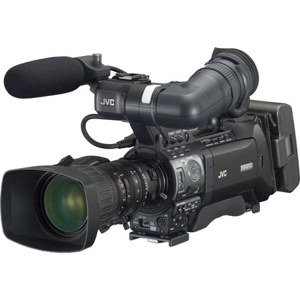

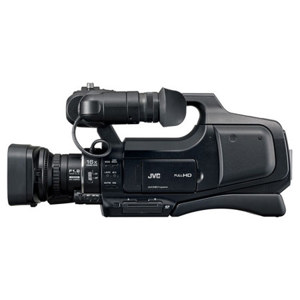

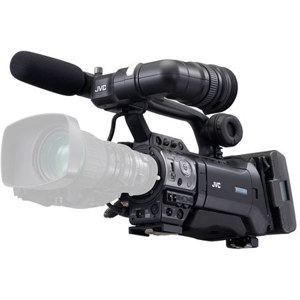

Previous: JVC GY-HM70U ProHD Shoulder Mount Camcorder  |  Next: JVC GY-HM750 ProHD Compact Shoulder Camcorder GY-HM750L17
