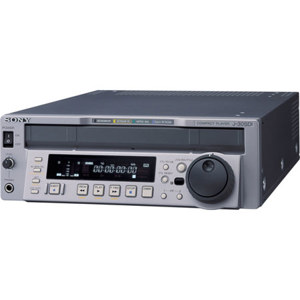

Sony J30SDI Betacam Series Player, Beta SP/SX
Sony J-30SDI Compact Betacam Series Player J30SDI
SKU: SOJ30SDI MFR: J30SDI
What's Included
What's Included With This Item:
- Sony J-30SDI Compact Betacam Series Player
- Infra-Red Remote Control
- Vertical Stand
- Sony Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The J-30SDI is a video tape player only for the entire range of Betacam-derived ½-inch formats. Those formats include Betacam, Beta SP, Beta SX, MPEG/IMX and Digital Betacam. The players work with both NTSC and PAL recorded elements. To fit into modern edit suites and production facilities, the unit outputs iLink which is Sony's version of FireWire, along with uncompressed SDI video for the highest quality standard definition video available.
- Sony J-30SDI Compact Betacam Series Player
- Infra-Red Remote Control
- Vertical Stand
- Sony Warranty
- Digital Video Outputs Even From Analog Source Material: Just because the production world has almost completely gone digital (film productions does still exist) doesn't mean that analog source video is obsolete
- Audio Output: The J-30SDI can access all 4 channels of audio native to the 1/2-inch Beta family of professional formats. The user may select any 2 at one time, channel 1 or 2, and channel 3 or 4. These selections control the headphone output also
| Signal System |
NTSC and PAL |
| Tape Format |
Digital Betacam
MPEG/IMX
Betacam SX
Betacam/Betacam SP |
| Tape Speed |
Digi-Beta-96.7 mm/sec.
MPEG/IMX-53.776 mm/sec. (NTSC)
BetaSX - 59.515 mm/sec (525 mode), 59.575 (625 mode)
Betacam/BetaSP - 118.6 mm/sec (525 mode), 101.5 mm/sec (625 mode) |
| Maximum Playback Time |
Digi-Beta-124 minutes
MPEG/IMX-184 minutes
BetaSX-194 minutes
Betacam/BetaSP-90 minutes |
| Audio Signal Format |
Digital and Analog Audio Playback |
| Input and Output Connectors |
Sync- BNC (x 1 input)
Composite Video- BNC (x 1 output)
Composite Video- RCA (x 1 output)
S-Video- 4-Pin (x 1 output)
FireWire- 6-Pin (x 1 output)
SDI Video- BNC (x 2 output)
Time Code- BNC (x 1 output)
Audio- XLR (x 2 output)
Audio- RCA (x 2 output)
RS-422A- 9-Pin (x 1)
RS-232C- 9-Pin (x 1)
Headphones- 1/4-Inch Stereo (x 1 output) |
| Power Requirements |
100-240 Volts AC, 50 or 60 Hz |
| Power Consumption |
55 Watts |
| Operating Temperature |
41° to 104° F
5° to 40° C |
| Dimensions (W x H x D) |
12-1/8 x 4 x 15-3/4 in./ 307 x 100 x 397mm |
| Weight |
18lbs. / 8.2kg |
