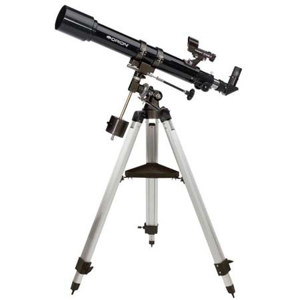

Orion Observer 70mm Equatorial Refractor Telescope Kit 9882
SKU: ONO70E MFR: 9882
Due to Manufacturer Restrictions, This Item can NOT be Shipped to California.
What's Included
What's Included With This Item:
- Orion Optical Tube Assembly
- 25mm Explorer II Eyepiece (1.25")
- 10mm Explorer II Eyepiece (1.25")
- 90-Deg Mirror Star Diagonal
- Tripod Legs
- Equatorial Mount
- EZ Finder II Finder Scope
- Finder Scope Bracket
- Tube Rings
- Counterweight
- Counterweight Shaft
- Tripod Accessory Tray
- Dust Cap
- Slow-Motion Control Knobs
- Starry Night Special Edition Software
- Orion 1 Year Limited Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Orion Observer 70mm Equatorial Refractor Telescope features a multi-coated, achromatic glass objective lens that's 70mm in diameter, with a focal length of 700mm (f/10). This lens takes in 36% more light than a 60mm lens. The optical tube is crafted from black-enameled aluminum and outfitted with a smooth-action rack-and-pinion focuser on one end and a dew cap/glare shield on the other.
The tube is held in quick-releasing tube rings on the EQ-1 equatorial mount. Also made of aluminum, this mount lets the user manually "track" celestial objects with the slow-motion controls. For added convenience, an optional EQ-1M electronic drive can be installed to provide automatic, hands-free tracking. The tube and mount are supported on a sturdy aluminum tripod that adjusts to a comfortable height.
The Observer 70 EQ comes with everything you need to start observing right away, including a star diagonal and 25mm (28x) and 10mm (70x) Explorer II eyepieces (1.25"). This telescope is well suited to beginners of any age-adolescent to adult. It is lightweight and compact so it's easy to carry to your observing location, be it out on the lawn or an hour's drive into the hills. It offers optical performance that will keep any observer entranced, evening after evening.
- Orion Optical Tube Assembly
- 25mm Explorer II Eyepiece (1.25")
- 10mm Explorer II Eyepiece (1.25")
- 90-Deg Mirror Star Diagonal
- Tripod Legs
- Equatorial Mount
- EZ Finder II Finder Scope
- Finder Scope Bracket
- Tube Rings
- Counterweight
- Counterweight Shaft
- Tripod Accessory Tray
- Dust Cap
- Slow-Motion Control Knobs
- Starry Night Special Edition Software
- Orion 1 Year Limited Warranty
- An exceptional starter telescope at a very affordable price
- 70mm aperture and 700mm focal length for excellent optical quality
- Includes sturdy tripod and equatorial mount for hands-free celestial tracking
- Includes two eyepieces, finder scope, focuser, diagonal and Starry Night astronomy software
| Use |
Astronomy |
| User level |
Beginner |
| Optical design |
Refractor |
| Optical diameter |
70mm |
| Focal length |
700mm |
| Focal ratio |
f/10.0 |
| Coatings |
Coated |
| Optics type |
Air-spaced doublet |
| Glass material |
Crown/Flint |
| Eyepieces included |
Explorer II 25.0mm, 10.0mm |
| Magnification with included eyepieces |
28x, 70x |
| Resolving power |
1.65arc sec |
| Lowest useful magnification |
10x |
| Highest useful magnification |
140x |
| Limiting stellar magnitude |
11.9 |
| Optical quality |
Diffraction Limited |
| Finder scope |
EZ Finder II |
| Focuser |
1.25" Rack-and-pinion |
| Diagonal |
1.25" 90-deg Mirror Star |
| Mount style |
Equatorial |
| Astro-imaging capability |
Lunar & planetary |
| Dovetail bar system |
No |
| Motor drive compatibility |
Clock drive (sold separately) |
| Computerized compatibility |
No |
| Bearing material |
Friction bearings |
| Latitude range |
14-70 |
| Setting circles |
Yes |
| Polar-axis scope |
No |
| Counterweights |
One 4.8 lbs |
| Tube material |
Aluminum |
| Tripod material |
Aluminum |
| Additional included accessories |
Tripod attachment screws, Wing nuts, Washers, Accessory tray attachment wing screws, Leg lock knobs, Latitude adjustment T-bolt |
| Counterweight bar length |
8 in |
| Diameter of counterweight shaft |
12mm |
| Height range of mount/tripod |
32.50 in - 54.75 in |
| Length of optical tube |
27.7 in |
| Weight, mount/tripod |
7.5 lbs |
| Weight, fully assembled |
15.4 lbs |
| Warranty |
Orion 1 year limited warranty |
