Mackie 3204VLZ3 32-Channel/4-Bus Premium Sr Console
Mackie

Mackie 32-Channel/4-Bus Premium SR Console 3204-VLZ3

SKU: VDMA3204VLZ3 MFR: 3204-VLZ3
What's Included
What's Included With This Item:
  • Mackie 32-Channel/4-Bus Premium SR Console
  • Tracktion 3 Music Production Software
  • Mackie 1 Year Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,349.99
Free Shipping (USA)
Qty:

Add to Wishlist

Related Categories

Mackie Firewire Mixer    Recording Mixer    Firewire Recording Mixer    Mackie Channel Mixer    Mackie Mixer    Behringer Mixer Xenyx    Ultra-Low Noise    Mic Mixer    Mic Line Mixer    Behringer Xenyx
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The 32-channel Mackie 3204-VLZ3 combines VLZ3 low-noise, high-headroom technology with increased channel count and superior processing that's perfect for real-world live gigs. 28 XDR2 mic channels, each with 3-band, sweepable mid EQ, offer more clean and useable gain than the competition.

Create great-sounding, professional mixes using dedicated channel and subgroup compression, dual RMFX+ effects processors and true 4-bus architecture. You can even connect to your laptop to record the show, stream house music or use your favorite plug-in live using the built-in 4x2 USB interface. Define your sound, create your mix and record the whole show with the 3204-VLZ3.

What's Included With This Item

  • Mackie 32-Channel/4-Bus Premium SR Console
  • Tracktion 3 Music Production Software
  • Mackie 1 Year Warranty

Related Products

Mackie 32-Channel/4-Bus Premium SR Console ONYX 32.4
Mackie 32-Channel/4-Bus Premium SR Console ONYX 32.4
$2,099.99
Free Shipping
Add to wish list

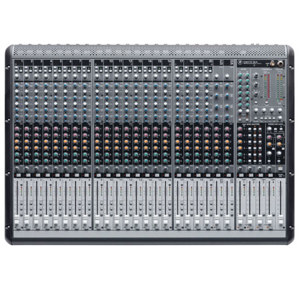

Mackie 24-Channel/4-Bus Premium SR Console ONYX 24.4
Mackie 24-Channel/4-Bus Premium SR Console ONYX 24.4
$1,599.99
Free Shipping
Add to wish list

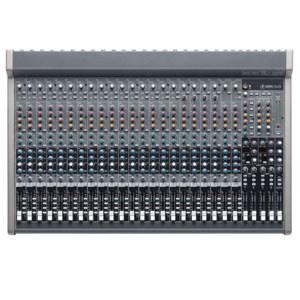

Mackie 24-Channel/4-Bus Premium SR Console 2404-VLZ3
Mackie 24-Channel/4-Bus Premium SR Console 2404-VLZ3
$1,149.99
Free Shipping
Add to wish list

Mackie 16-Channel/4-Bus Premium Firewire Recording Mixer ONYX 1640I
Mackie 16-Channel/4-Bus Premium Firewire Recording Mixer ONYX 1640I
$1,599.99
Free Shipping
Add to wish list

Samson L3200 32 Channel 4 Bus Sound Reinforcement Mixing Console SAL3200
Samson L3200 32 Channel 4 Bus Sound Reinforcement Mixing Console SAL3200
$999.99
Free Shipping
Add to wish list

Key Features

  • 32-channel 4-bus mixer with proven VLZ3 low-noise, high-headroom design
  • Distortion under 0.0007% (20Hz - 20kHz)
  • Phantom power for studio condenser mics
  • 4 subgroups, featuring dedicated compressors for total dynamic control
  • Dedicated inline channel compression for critical inputs (ch. 25-28)
  • 3-band active EQ with carefully selected frequency ranges for maximum flexibility
  • Dual 32-bit RMFX+ processors featuring 24 "Gig Ready", useable reverbs, choruses, and tap delay for live applications
  • Integrated 4x2 24-bit USB interface
  • Stream subgroups or master L/R to your PC or Mac for recording
  • Use your favorite plug-in live via auxes 5/6
  • Convenient stereo return to mains for music playback or return to channel and implement EQ, auxes and more
  • 6 aux sends with inserts, pre/post fader and internal/external FX send options available
  • 60mm long-wearing logarithmic-taper faders
  • All steel, classic Mackie "Built-Like-A-Tank" chassis design
  • Smallest footprint in class saves precious desk space
  • Lightweight and portable (39lbs / 17.7kg)

Technical Specs

Dynamic range 130dB
Mic preamps 28 studio-grade XDR2
Software Requirements: PC Microsoft Windows 7 32 / 64, Vista 32 / 64 RTM or XP SP 2
Pentium 4, Celeron or Athlon XP processor
512 MB RAM
Software Requirements: Mac Mac OS X 10.4.11 - 10.6.4
G4 processor
512 MB RAM
Low cut filter 18dB/oct. 100Hz
Interface Integrated 4 x 2, 32-bit USB
Channel Input Type 28 balanced Mic/Line, 2 balanced Stereo Line
Frequency response (Mic input to any output)
20Hz to 50kHz: +0dB / -1dB
20Hz to 100kHz: +0dB / -3dB
Distortion (THD+N) (1kHz at 15dB gain, 20Hz-20kHz bandwidth)
Mic In to Insert Send: < 0.001%
Mic In to Main Out: < 0.005%
Attenuation and Crosstalk (1kHz relative to +10dBu, 20Hz-20kHz bandwidth, Mic In,
1/4in Main Out, Gain at unity)
Channel Mute switch engaged: -90dBu
Channel Fader down: -88dBu
Common Mode Rejection Ratio (CMRR) (Mic In to Insert Send out, max gain)
1kHz: better than -70dB
Maximum levels Mic In: +21dBu
All other inputs: +21dBu
Main Mix XLR Out: +27dBu
All other outputs: +21dBu
3-Band Equalization (mono channels) Low: ±15dB at 80Hz
Mid: ±15dB sweep 100Hz-8kHz
High: ±15dB at 12kHz
Low-cut Filter: 18dB/octave, -3dB at 100Hz
USB Format: USB 1.1
I/O: Stereo input, 4-channel output
A/D/A: 24-bit, 44.1kHz/48kHz
Input and Output Impedance: Mic In 2.7 kohm
Input/Output Impedance: Ch Insert Return 2.5 kohm
Input/Output Impedance: All Other Inputs 10 kohm or greater
Input and Output Impedance: Tape out < 10 ohm
Input/Output Impedance: All Other Output 120 ohm
Power consumption 65W
Universal AC Power Supply 100-240 VAC, 50-60Hz
Operating Temperature 0-40 deg. C / 32-104 deg. F
Dimensions (W x H x D) 38 x 2 (front)/6 (rear) x 19.1in / 964 x 50.8 (front)/153(rear) x 486mm
Weight 39lbs / 17.7kg
