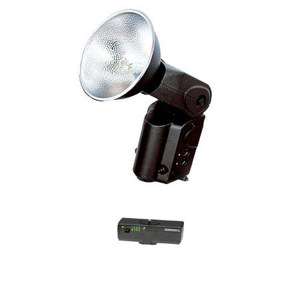

NEW Qflash 5d-R -("d" for digital and "R" for Ratio)- is the latest evolution in Quantum's proven Qflash portable flash line. The new 5d-R series used with Quantum's FreeXwire digital radio system, now support wireless control of all dedicated camera-flash functions-Manual, TTL, Auto, Auto-fill and TTL-Ratio-up to 500 ft. away
Qflash "Digital" model T5d & X4d are "dedicated" to the latest digital and film camera systems through its own QTTL through-the-lens dedicated exposure control. Parabolic reflectors produce softer, cleaner light. And they quickly interchange for bare bulb, wide angle, diffused, and telephoto reflectors.
Qflash "digitals" are smaller and lighter than their predecessors. Flash heads swivel and bounce and lock into position with one button control.
In addition to full dedication Qflash operates in Manual, Auto, TTL, and Strobo modes. In automatic mode, Qflash power adjusts in 1/3 steps over wide ranges-- from f/1.4 to f/22 for ISO 100 film- in 25 precision settings. In manual mode Qflash displays 19 power settings from full to 1/64th power, in 1/3 step increments.
Multiple flash set-ups are easier because Qflash units communicate and coordinate through control cables, or wirelessly via FREEXWIRE digital transceivers. Do wireless QTTL, A-TTL, D-TTL, E-TTL, auto, and even change settings on remote Qflashes.
Model T5d gets its power from Quantum Turbo, Turbo 2x2, or Turbo Compact. and Model X4d gets its power from the Qpaq-X. It can also be powered by a Lumedyne or Norman pack, for up to 400 watt-seconds (GN 220, ISO 100) auto flash
Qflash power exceeds that of typical shoe-mount and handle-mount flashes, which allows for greater distances, bigger shots, and muchmore bounce power. That, combined with its studio quality light give professionals just the portable lighting they need.
QTTL Adapters
Quantum's QTTL system is fully dedicated to popular camera systems, such as Nikon*, Canon*, Contax*, Mamiya*, and more. Using the QTTL adapter for your camera, Qflash "Digitals" display and track the camera f/number and film speed set in the camera, allow for rear curtain sync, and provide infra-red auto focus assist.
QTTL adapters can offset Qflash output between -3 to +2 stops (in 1/3 steps) in relation to the f/number setting on the camera. Evenif your camera doesn't support fill/flash ratio, the QTTL ratio setting tracks the camera aperture as it changes, providing automatic fill/flash ratio!
Digital and film cameras that employ "pre-flash" metering are also supported by Quantum's QTTL adapters.
Requires the FW10w FreeXwire Digital Transceiver for Wireless TTL >
