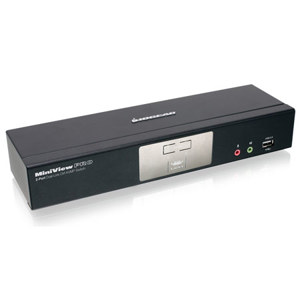

Iogear GCS1782G 2-Port Dual-Link DVI KVMP Pro Switch
Iogear

Iogear GCS1782G 2-Port Dual-Link DVI KVMP Pro Switch GCS1782G

SKU: IGGCS1782G MFR: GCS1782G
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$189.95
Qty:

Add to Wishlist

Related Categories

Dvi Audio Switch    Iogear Kvmp Switch    Kvmp Switch    Dvi Port Kvm Switch    Dual Dvi Kvm Switch    Dual Kvm Switch    Iogear Switch    Iogear Port Switch    Dual Link Dvi Cable    Dual Link Dvi

About this item

Iogear GCS1782G 2-Port Dual-Link DVI KVMP Pro Switch with 7.1 Audio, high-end 3D graphics support (NVIDIA 3D Vision Ready), is compatible with most gaming keyboards and has an integrated 2-port USB 2.0 hub for peripheral sharing. Now users can control two computers and share multiple USB peripherals from a single keyboard, monitor and mouse console. It features Iogear's DynaSync technology which allows the KVMP to read and remember the monitor's optimal display parameters and refresh rate, a function critical in today's graphic intense applications where large wide screen displays (up to 30") are required.

The patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected to the hub or via an external powered USB 2.0 hub. Access to such peripherals is performed on a one-at-a-time basis. Finally, the audio ports allow for connecting powered desktop speakers for stereo sound and a single microphone for audio input/output to each computer.

What's Included With This Item

  • Iogear GCS1782G 2-Port Dual-Link DVI KVMP Pro Switch
  • 2 x Dual-Link DVI-D KVM Cable
  • 2 x 7.1 Audio Cable
  • 1 x PS/2 to USB Adapter
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card
  • Iogear 3 Years Warranty

Key Features

  • Share a professional quality monitor between two USB, DVI computers
  • DynaSync technology reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between, or booting computers
  • Compatible with gaming keyboards
  • Supports high-end 3D graphics
  • Share a 7.1 surround sound system between two computers
  • 2-port USB 2.0 peripheral hub to share printers or external hard drives
  • Asynchronous hotkey switching between KVM focus, USB peripheral and audio ports
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Mouse emulation may be disabled to allow programmable buttons to function
  • Supports MAC keyboard and special keys
  • Firmware upgradeable

Technical Specs

Port Selection Hotkey, Push Button
Console Connectors: Mouse 1 x USB Type A Female
Console Connectors: Keyboard 1 x USB Type A Female
Console Connectors: Monitor 1 x Dual Link DVI-I Female
Console Connectors: Flash ROM Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Connectors (console): Center/Subwoofer 1 x Mini Stereo Jack Female (Orange)
Connectors (console): Line In 1 x Mini Stereo Jack Female (Blue)
Connectors (console): Line Out 1 x Mini Stereo Jack Female (Green)
Connectors (console): Microphone 1 x Mini Stereo Jack Female (Pink)
Connectors (console): Rear Speaker Out 1 x Mini Stereo Jack Female (Black)
Connectors (console): Side Speaker Out 1 x Mini Stereo Jack Female (Grey)
CPU Connectors: Keyboard & Mouse 2 x USB Type B Female
CPU Connectors: Monitor 2 x Dual Link DVI-I Female
Connectors (CPU): Center/Subwoofer 1 x Mini Stereo Jack Female (Orange)
Connectors (CPU): Line In 1 x Mini Stereo Jack Female (Blue)
Connectors (CPU): Line Out 1 x Mini Stereo Jack Female (Green)
Connectors (CPU): Microphone 1 x Mini Stereo Jack Female (Pink)
Connectors (CPU): Rear Speaker Out 1 x Mini Stereo Jack Female (Black)
Connectors (CPU): Side Speaker Out 1 x Mini Stereo Jack Female (Grey)
Peripheral Sharing 2 x USB 2.0 Type A Female
LEDs Selected 2 (Orange)
USB Peripherals 2 (Green)
Emulation Keyboard: USB
Mouse: USB
Scan Interval 1-99 sec (5 sec default)
Video Resolution DVI-D: 2560 x 1600 @60Hz (Dual Link); 1920 x 1200 @60Hz (Single Link); 3840 x 2400 @13Hz (Single Link); DVI-A: 2048 x 1536; DDC2B
Power Voltage: DC 5.3V
Amps: 2.4A
Operation Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Housing Metal
Operating Systems Windows XP, Windows Vista (32 / 64-bit)
Windows 7 (32 / 64-bit)
Mac OS X v10.3.9 or later
Sun Solaris
Linux
Dimensions (W x H x D) 13 x 8.5 x 4"/33.02 x 21.59 x 10.16 cm
Weight With Accessories: 4.6 lb/2.086 kg
Without Accessories: 1.84 lb/0.834 kg
