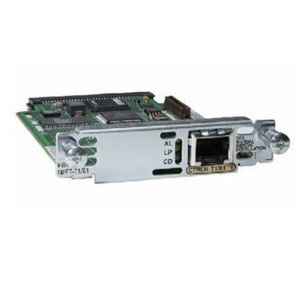

Cisco 2nd Generation Multiflex Trunk Voice/WAN Interface Card
Cisco 2nd Generation 1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card VWIC2-1MFT-T1/E1=
SKU: CIMFTT1E1 MFR: VWIC2-1MFT-T1/E1=
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Cisco 1 port T1/E1 multiflex interface card support generic single-port T1 or E1 trunk interfaces for voice, data and integrated voice and/or data applications. This card provide basic structured T1 service, as well as structured and unstructured E1 services.
- The card include an integrated data service unit/channel service unit (DSU/CSU)
- Shielded cables STP Cat 5 should be used on E1 ports
- Full support for T1 Facility Data Link (FDL)
- Controller local loopbacks
- Controller remote loopbacks
- Firmware to support T1 and E1 Layer 1 homologation
- User-initiated VWIC reset and field-programmable gate array (FPGA) download
- Voice support (includes DS0-group and PRI-group configuration)
- Drop and insert capability
- MFT VWIC2s have an onboard slot for a multiflex trunk dedicated echo cancellation module (EC-MFT-32 and EC-MFT-64), offering an enhanced echo cancellation capability for demanding network conditions
| Compatibility |
Cisco 2600XM series, Cisco 2691, Cisco 2800 series, Cisco 3700 series and Cisco 3800 series routers
Cisco 1700 Series Modular Access Routers
Supported Network Module:
NM-HDV
NM-HDV2
NM-HD-2VE
NM-2W
NM-1FE1R2W
NM-1FE2W-V2
NM-2FE2W-V2 |
| Application/Usage |
Voice |
| Interfaces/Ports |
1 x T1/E1 WAN |
| Interfaces/Ports Details |
1 x RJ-48C T1/E1 WAN |
| Certifications & Standards |
ITU-T G.164
ITU-T G.165
ITU-T G.168
RFC 1406
MIBs:
RFC 1406 MIB
T1 CSU MIB Support
Port Module MIB
T1/E1 Line Status Reporting |
| Status Indicators |
AL
LP
CD |
| Management |
MIB and Simple Network Management Protocol (SNMP) |
| Data Transfer Rate |
1.54 Mbps T1
2.05 Mbps E1 |
| Protocols |
SNMP |
| Interface Type |
T1/E1 |
| Number of Ports/Channels |
1 |
