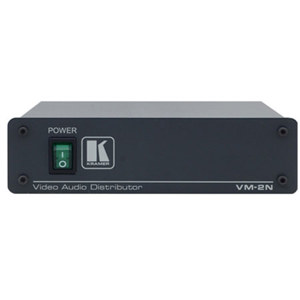

Kramer VM2N 1:2 Video/Audio Distribution Amplifier
Kramer VM-2N 1:2 Composite Video & Stereo Audio Distribution Amplifier VM2N
SKU: VDKRVM2N MFR: VM2N
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Kramer VM-2N 1:2 Composite Video & Stereo Audio Distribution Amplifier
- Power Cord
- Kramer 7 Years Limited Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Kramer VM-2N is a high-performance distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.
- Kramer VM-2N 1:2 Composite Video & Stereo Audio Distribution Amplifier
- Power Cord
- Kramer 7 Years Limited Warranty
- High Bandwidth - 400MHz (-3dB)
- Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter
| Input |
1 composite video: DC coupled. 1Vpp/75 Ohm on a BNC connector; 1 audio: stereo/balanced mono. +4dBu/50k Ohm on RCA connectors |
| Output |
2 composite video: 1Vpp/75 Ohm on BNC connectors. 2 audio: stereo/balanced mono, +4dBu/50 Ohm on RCA connectors |
| Max. Audio Level (-3dB) |
22dBu |
| Video Bandwidth |
Exceeding 400MHz |
| Audio Bandwidth |
>100kHz (1db) |
| Differential Gain |
<0.05% |
| Differential Phase |
0.1Deg |
| K-factor |
<0.05% |
| S/N Ratio |
Better than 85dB (audio) 75dB (video) |
| Sdi Eff. Range |
Up to 50 meters |
| Audio THD+n |
0.02% |
| Power Source |
230V AC/50Hz, (115V AC USA), 4.6VA |
| Dimensions |
16.5cm x 12cm x 4.5cm (6.5" x 4.7" x 1.8") (W x D x H) |
| Weight |
0.620kg (1.3lbs) approx |
| Warranty |
Kramer 7 years limited warranty |
