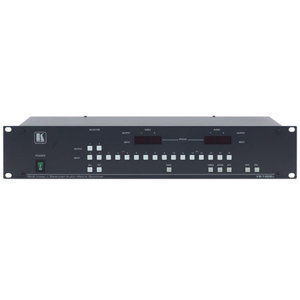

Kramer VS1602XL 16x2 Video/Stereo Audio Matrix Switcher
Kramer VS-1602XL 16x2 Composite Video & Balanced Stereo Audio Matrix Switcher VS1602XL
SKU: VDKRVS1602XL MFR: VS1602XL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Kramer VS-1602XL 16x2 Composite Video & Balanced Stereo Audio Matrix Switcher
- Power Cord
- Windows
- Based Control Software
- Null Modem Adapter
- Kramer 7 Years Limited Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Kramer VS-1602XL is a high performance matrix switcher for composite video and balanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Kramer VS-1602XL 16x2 Composite Video & Balanced Stereo Audio Matrix Switcher
- Power Cord
- Windows
- Based Control Software
- Null Modem Adapter
- Kramer 7 Years Limited Warranty
- Bandwidth - 200MHz (-3dB) fully loaded
- Control - Front panel, RS-232 (K-Router Windows-based software is included) & RS-485
- Take Button - Execute multiple switches all at once
- Memory Locations - Store multiple switches as presets to be recalled and executed when needed
- Audio Breakaway Switching
- Vertical Interval Switching
- Standard 19" Rack Mount Size - 2U
| Input |
16 composite video, 1Vpp/75 Ohm on BNC connectors. 16 balanced (or unbalanced) audio stereo, + 4dBu/47k Ohm on detachable terminal blocks |
| Outputs |
2 composite video, 1Vpp/75 Ohm on BNC connectors. 2 balanced (or unbalanced) audio stereo, + 4dBu/50 Ohm (20 Vpp max.) on detachable terminal blocks |
| Video Bandwidth (-3dB) |
200MHz |
| Audio Bandwidth (-3dB) |
100kHz |
| Diff. Gain |
0.04% |
| Diff. Phase |
0.04 Deg |
| K-factor |
0.05% |
| Video S/N |
73dB |
| Audio S/N |
82dB unweighted, (1Vpp) |
| Video Crosstalk |
<60dB @ 5MHz |
| Non-linearity |
0.05% |
| Control |
Manual, RS-232 or RS- 485 |
| Audio THD |
0.021% (1V, 1kHz) |
| 2nd Harmonic |
0.004% |
| Switching |
Vertical interval |
| Power Source |
230V AC, 50/60 Hz, (115V AC, U.S.A.) 10VA |
| Dimensions |
19-inch (W), 7-inch (D) 2U (H) rack mountable |
| Weight |
3.4 Kg (7.5 Lbs.) approx |
| Warranty |
Kramer 7 years limited warranty |
