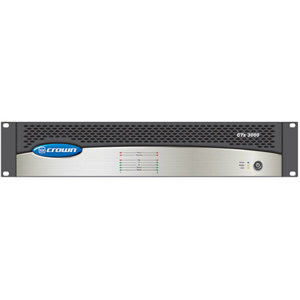

Crown Audio CTS-3000-LITE 2-Channel Amplifier, 1200W
Crown Audio CTs-3000-LITE CTs Series 2-Channel Amplifier CTS3000LITE
SKU: CRWCTS3000LT MFR: CTS3000LITE
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
What's Included
What's Included With This Item:
- Crown Audio CTs-3000-LITE CTs Series 2-Channel Amplifier
- Power Cable
- Owner's Manual
- Crown Audio 3 Years Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Crown Audio CTs-3000 is a 2-Channel power amplifier housed in a 2-space rackmount frame, offering power levels and features meant to serve fixed installation sound applications. This amplifier is notable for a completely independent array of switches and indicators for each channel, including high and low impedance operation, input sensitivity, high pass filters and an advanced level of well designed overload protection circuitry. This unit includes a PIP-LITE module for networked controlling via either HiQnet and System Architect or TCP/IQ and IQwic.
- Crown Audio CTs-3000-LITE CTs Series 2-Channel Amplifier
- Power Cable
- Owner's Manual
- Crown Audio 3 Years Warranty
- High-power, 2-channel, 2U rackmount amplifier for installed sound applications
- Switching power supply lowers overall amplifier weight
- Direct 70V/100V/140V/200V constant-voltage or 2/4/8 Ohm low-impedance operation
- Independently selectable Input Sensitivity switching per channel
- Rear panel Programmable Input Processor(PIP2) connector accepts accessory expansion modules for specific custom installation requirements
- Thermal Level Control(TLC) circuitry protects amplifier from overheating; engages input compressor, dynamically reducing input gain when individual channels overheat
- Junction Temperature Simulation(JTS) quick-activation circuitry limits drive level of output devices to tolerable range if excess power is required; protects output transistors without shutting down channel
- Continuously variable fan cooling; venting with front-to-rear forced airflow
- Removable balanced terminal block input connectors with "Y" switch
- Switchable high pass filter per channel, eliminates step down transformer saturation in distributed systems
- Complete array of front panel function and warning indicator LEDs for each channel
- Complete array of rear panel function and filter switches
- Power on indicator flashes when AC mains are under or over voltage
- Advanced protection circuitry covers shorted outputs, DC, mismatched loads, overheating, high frequency overloads, voltage fluctuation and internal faults.
| Output Power |
2 ohm Dual (Per Channel): 1500W
4 ohm Dual (Per Channel): 1500W
8 ohm Dual (Per Channel): 1250W
16 ohm Dual (Per Channel): 625W
70V Dual (Per Channel): 1500W
100V Dual (Per Channel): 1500W
4 ohm Bridge: 3000W
8 ohm Bridge: 3000W
16 ohm Bridge: 2500W
140V Bridge: 3000W
200V Bridge: 3000W |
| Damping Factor |
10 Hz - 100 Hz:>3000 |
| Input Sensitivity |
Switchable:
1.4V(8/4 Ohms)
26 dB Gain:
2.46V(4 Ohm Load)
3.47V (8 Ohm Load)
1.4V(70V) |
| Input Impedance |
10 kOhms balanced(nominal), 5 kOhms unbalanced(nominal) |
| Gain |
71.4:1 (37 dB) |
| Frequency Response |
20 Hz - 20 kHz +/-0.25 dB @ 1 Watt |
| Signal-to-Noise Ratio |
105 dB A-Weighted, below rated power(20 Hz - 20 kHz) |
| Total Harmonic Distortion (THD) |
< 0.35%, at full rated power (20 Hz - 20 kHz) |
| Input Connections |
2 x Balanced 3-Pin Terminal Block Connectors(one per channel) |
| Output Connectors |
1 x 4-Pole Terminal Strip(Ch 1, Ch 2) |
| Controls Front Panel |
1 x Power Switch |
| Controls (Rear) |
1 x Reset Switch
1 x Rotary Channel Level Control(per channel)
1 x 2-Position Operation Mode Switch
1 x Highpass Filter Switch(per channel)
1 x "Y" Input Switch
1 x Interior 3-Position Input Sensitivity Switch(per channel) |
| Indicators |
Front Panel:
1 x Yellow LED Bridge Mode Indicator
1 x Green LED Ready Indicator
3 x Green LED Signal Indicators(per channel)
1 x Red LED Clip Indicator(per channel)
1 x Red LED Thermal Indicator(per channel)
1 x Red LED Fault Indicator
1 x Yellow LED Data Indicator(per channel)
1 x Blue LED Power Indicator
Back Panel: No Indicators on Back Panel |
| Cooling |
Continuously Variable Speed Fans
Ventilation Grille(Front),Cooling Vents(Back)
Front-to-Rear forced airflow |
| Power Consumption |
35 Watts (120 VAC Mains) |
| Specialties |
Variable Speed Fan Cooling
Thermal Level Control
JTS Limiting Circuitry |
| Dimensions (WxHxD) |
19 x 3.5 x 14.25" (483 x 89 x 362mm) |
| Weight |
27.7 lb (12.6 kg) |
