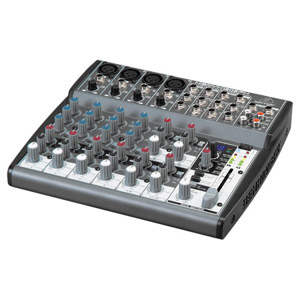

Behringer XENYX 1202FX Small Format Mixer
Behringer
Behringer XENYX 1202FX Small Format Mixer 1202FX
SKU: BE1202FX MFR: 1202FX
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Behringer XENYX RX-1202FX is a compact, 19-inch rack mountable audio mixer with eight mono and two stereo channels, for a total of twelve input channels. Channels 1 through 8 are mono and feature a 1/4" line and balanced XLR microphone inputs. Channels 9/10 and 11/12 are stereo paired with stereo 1/4" phone line connectors.
All channels feature a 2-band EQ with gain and level control. An on-board effect processor provides delay, chorus and reverb effects. The output section includes stereo balanced XLR and 1/4" phone outputs. The RX-1202 is an ideal choice as a keyboard mixer, small sound reinforcement installation and more.
- Premium ultra-low noise, high headroom analog mixer
- 4 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic "British" 3-band EQs for warm and musical sound
- Studio-grade stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- FX send control per channel for internal FX processor and/or as external send
- Main mix outputs plus separate control room, phones and stereo CD/tape outputs
- CD/tape inputs assignable to main mix or control room/phones outputs
- Long-wearing 60-mm logarithmic-taper fader and sealed rotary controls
- High-quality components and exceptionally rugged construction ensure long life
| Total Number Of Inputs |
12 |
| Mic/Line Inputs |
8 Microphone - 3-pin XLR Balanced
12 Line - 1/4" Phone |
| Stereo Line Inputs |
Channels 9/10, 11/12 - Stereo 1/4" Phone |
| AUX Sends |
2 - 1/4" Phone |
| AUX Returns |
2 - 1/4" Phone |
| Inserts |
Channels 1 through 8 - 1/4" Phone TRS |
| BUS (Group) Outputs |
Stereo Output Only |
| 2 Trk Master I/O |
Stereo Out - L/R 3-pin XLR
CD/Tape In - RCA Phono
CD/Tape Out - RCA Phono |
| Monitor Outputs |
CTRL Room Out - L/R 1/4" TRS Phone |
| EQ Section |
Low: 100Hz, +/- 15dB
High: 12kHz, +/- 15dB |
| Channel Level Control |
Rotary Control |
| Trim/Gain Control |
Rotary Control |
| Phantom Power |
+48V Phantom |
| Metering |
4-Segment Peak LED Meters
Power and +48V Phantom Indicators |
| Frequency Response |
< 10Hz to 200kHz |
| Signal-to-Noise Ratio |
Main Mix @ -Unity, -98dB / -101dB A-weighted |
| Total Harmonic Distortion (THD) |
0.003%, A-Weighted |
| Power Supply |
Power Consumption: 18W
Voltage: 100 - 240 V, 50/60 Hz
Fuse: 100 - 240 V: T 1.6 A H 250V
Mains Connection: IEC (Power) Cable |
| Dimensions |
5.23 x 18.97 x 5.90" (133 x 482 x 150mm) (H x W x D) |
| Weight |
6.4 lbs (2.9 kg) |
