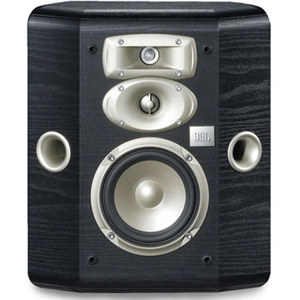

JBL L810H 3-Way Bookshelf Satellite Speaker, Black
JBL L810 3-Way 5-1/4" (130mm) Pair L810H
SKU: JBLL810H MFR: L810H
What's Included
What's Included With This Item:
- JBL 4 x Self-Adhesive Rubber Mounting Pads
- Owner's Guide
- JBL 5 Years Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The JBL L810 features dual front-facing FreeFlow bass ports for outstanding bass performance with minimum distortion, even at high listening levels. The Studio L series was designed for both professional and entertainment enthusiasts with the capability to deliver crystal clear dialog and tight sound response. It features a 5-1/4" Polyplas woofer cone with an oversized Kapton voice coil and HeatScape motor.
In addition, it offers a 1" pure-titanium dome tweeter mounted in Elliptical Oblate Spheroidal (EOS) waveguides and a 3/4" Mylar dome mounted in a Bi-Radial horn with a cast aluminum chassis. It features 75W RMS/300W peak power, Low-diffraction, IsoPower baffle, Straight-Line Signal Path (SSP) crossover network, magnetic shielding and heavy-duty (gold-plated) binding posts.
With dual front-facing FreeFlow bass ports, it provides superior bass quality with minimum distortion, even at high listening levels. Its stylish design, slender profile and wood-like craftsmanship will complement any room's decor. If you want a quality, well-constructed bookshelf speaker, look no further than the JBL L810.
- JBL 4 x Self-Adhesive Rubber Mounting Pads
- Owner's Guide
- JBL 5 Years Warranty
- Elliptical Oblate Spheroidal (EOS) Waveguide: This powerful speaker is designed with JBL's proprietary EOS Waveguide technology that realizes the sonic response of your listening environment
- Straight-Line Signal Path (SSP): SSP technology is crossover network that preserves clarity, detail and dynamics of the original audio content.
- Pure Titanium Tweeter Design: This unique design is capable of eliminating unwanted tonal resonances in the signal path. The end result is a full, clear, tight reproduction of high frequencies.
- PolyPlas Driver Technology: PolyPlas technology enhances the organic fiber structure of low-and midrange-frequency cones, without adding significant weight.
- 3-Way Speaker Configuration: Due to its 3-way speaker design and quality cones, this speaker reproduces a full-range of frequencies and lifelike imaging.
- Dual FreeFlow Port Design: The Dual FreeFlow port design offers tighter bass by extending deep bass response. It eliminates unwanted turbulence by coupling internal air motion to a computer-designed aperture with a flared shape, allowing maximum air flow without audible "port noise".
- Bi-Wiring Capabilities: The internal dividing network of this speaker enables bi-wiring capabilities that offer more flexibility in amplifier selection and provides several sonic advantages in the overall audio response.
- Superb Frequency Response: With a frequency response of 60Hz - 40KHz, this speaker reproduces a full sound range from deep bass tones to ultra-high frequencies.
- Versatile Placement: It offers multiple mounting and placement options that allow it to fit almost anywhere, including bookshelves and walls
- Magnetically Shielded: This speaker is magnetically shielded for safe placement near your TV or display.
| Maximum Recommended Amplifier Power |
150W |
| Power Handling (Continuous/Peak) |
75W/300W |
| Nominal Impedance |
8 Ohms |
| Sensitivity (2.83V/1m) |
88dB |
| Frequency Response (±3dB) |
60Hz - 40kHz |
| Crossover Frequencies |
3.5kHz, 20kHz |
| Ultrahigh-Frequency Driver |
3/4" (19mm) Mylar dome, cast-aluminum chassis, mounted in a Bi-Radial horn |
| High-Frequency Transducer |
1" (25mm) Pure-titanium dome in JBL EOS waveguide, cast-aluminum chassis |
| Low-Frequency Transducer |
5-1/4" (130mm) PolyPlas cone with rubber surround, cast-aluminum chassis, HeatScape motor structure, Symmetrical Field Geometry (SFG), oversized Kapton voice coil, magnetic shorting ring |
| Magnetically Shielded |
Yes |
| Baffle |
Low-diffraction, IsoPower baffle |
| Port |
Dual FreeFlow, on front |
| Network |
Straight-Line Signal Path (SSP) |
| Terminals |
Gold-plated, 5-way binding posts, bi-wirable |
| Dimensions (H x W x D) |
14-1/4" x 12-1/4" x 5" (362mm x 311mm x 127mm) |
| Weight per Speaker |
14 lb (6.4kg) |
| Warranty |
JBL 5 years warranty |
