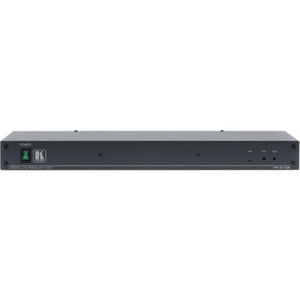

Kramer TP-310A 1:10 Receiver/Distribution Amplifier,Blk
Kramer TP-310A Twisted Pair Receiver and Distribution Amplifier TP-310A
SKU: VDKRTP310A MFR: TP-310A
What's Included
What's Included With This Item:
- Kramer TP-310A 1:10 Receiver and Distribution Amplifier
- 1U Rack Ears
- Power Cord
- Kramer Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Kramer TP-310A is a high-performance twisted pair receiver and distribution amplifier for computer graphics video, audio and RS-232 signals. The unit takes one twisted pair input and provides ten twisted pair outputs plus two computer graphics video, two stereo audio, two S/PDIF audio and two RS-232 outputs for local monitoring.
- Kramer TP-310A 1:10 Receiver and Distribution Amplifier
- 1U Rack Ears
- Power Cord
- Kramer Warranty
- HDTV Compatible
- Level (Gain) & EQ (Peaking) Controls - 15-pin HD outputs
- Max. Resolution - WUXGA & 1080p
- Twisted Pair Connectors
- Audio Outputs - 2 unbalanced stereo audio on 3.5mm mini jacks, 2 S/PDIF on RCA connectors
- RS-232 Outputs - 2 RS-232 outputs on 4-pin terminal blocks
- Sync Polarity Settings - H & V switches
- System Range (Twisted Pair) - Up to 100m (320ft)
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
- Power Connect System - Only the TP-310A needs to be connected to a power source when the devices are within 50m (150ft) of each other
- Worldwide Power Supply - 100-240V AC
| Input |
1 twisted pair on an RJ-45 connector |
| Outputs |
10 twisted pairs on RJ-45 connectors; 2 UXGA on 15-pin HD connectors; 2 unbalanced stereo audio on 3.5mm minijacks; 2 S/PDIF on RCA connectors; 2 RS-232 on a 4- pin terminal block |
| Max. Output level: video |
1.3Vpp/75Vpp |
| Max. Output level: audio |
2.3V/10kOhms |
| Power Outputs |
12V DC 0.5A max via each RJ- 45 output (PINs 4, 5) |
| Max. Resolution |
WUXGA & 1080p |
| Bandwidth (-3dB) |
20Hz to 20kHz @1dB (audio) |
| Sampling Rate for s/pdif |
48kHz |
| S/N Ratio |
Audio: >75dB |
| Total Gain |
Analog/analog: 0dB; Analog/ S/PDIF: -12dBFS (audio) |
| Thd+n |
<0.02% |
| Power source |
100-240V AC, 50/60Hz, 50VA |
| Dimensions (W x D x H) |
19" x 9.3" x 1" / 48.26 x 23.62 x 2.54 cm |
| Weight |
3 kg / 6.6 lbs |
