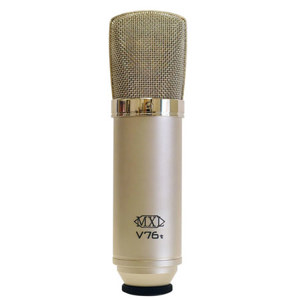

MXL V76T Large Diaphragm Condenser Microphone
MXL V76T Large Diaphragm Vacuum Tube Condenser Microphone V76T
SKU: MXLV76T MFR: V76T
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The MXL V76T is a large diaphragm Tube Condenser Microphone designed for project and professional studio recording. The frequency response delivers a warm, up-front mid-range that accentuates the presence in vocals and instruments. The low frequency roll-off switch minimizes low frequency noise and proximity effect, a 10dB Pad switch provides enhanced headroom when capturing excessively transient (peaking) signal. The V76T is an excellent, cost effective option for vocal and general instrument capturing where warmth and clarity is key.
- Vintage Tube Warmth: The V76T provides warmth and presence, accentuating the mid-range frequencies of instruments and vocals without noise
- Low Frequency Roll-Off: The low-frequency roll-off reduces noise and proximity effect below 100Hz
- -10dB Pad: A -20dB Pad provides added headroom and eliminates distortion due to peaking transients
| Transducer |
Condenser pressure gradient mic with large 25mm diaphragm capsile |
| Polar Pattern |
Cardioid |
| Frequency Response |
30Hz - 20kHz |
| Signal-to-Noise Ratio |
22 db (A-weighted IEC 268-4) |
| Maximum Input Sound Level |
Max SPL for 0.5% THD: 122dB |
| Power Requirements |
120/240V 50/60hz |
| Output Impedance |
200 ohms |
| Output Connectors |
3-pin XLR |
| Pad |
-10dB |
| Low Frequency Roll-Off |
HPF @ 100Hz |
| Dimensions (Diameter x Length) |
1.89 x 7.68" (48 x 195mm) |
| Weight |
18.52 oz (525 g) |
