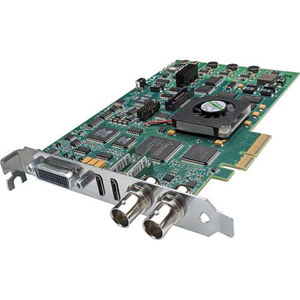

AJA KONA LHi Mac Video Capture and Playback Card
AJA Video
AJA KONA LHi Mac Video Capture and Playback Card KONA LHI
SKU: AJKONALHI MFR: KONA LHI
What's Included
What's Included With This Item:
- AJA KONA LHi Capture Card
- Breakout Cable
- AJA Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The AJA KONA LHi Capture Card (Mac) from AJA is designed to bridge the gap between legacy, analog devices and the latest products using 3Gbps SDI and HDMI v1.3a. This card is designed to interface with PCIe Apple Mac OSX hardware and QuickTime software. AJA drivers also offer integrated support for Apple Final Cut Studio.
This card enables editing, monitoring and mastering of professional-quality video. Use it to capture to QuickTime at 10-bit and 8-bit uncompressed formats, as well as Apple ProRes 422, DVCPRO HD and more.
- AJA KONA LHi Capture Card
- Breakout Cable
- AJA Warranty
- KONA LHi uses the Aja Control Panel application to configure various hardware parameters and can also be used to auto-detect input format & frame rate and configure hardware-based up/down/cross-conversions
- Use this device to interface with devices such as an HDMI-enabled camera, an HD-SDI VTR connection and legacy analog video equipment
- By way of the card's "Input PassThrough" mode, you can configure it to act as a converter within your computer, allowing you to embed or disembed audio or convert a signal like HDMI to HD-SDI
- It features full, 10-bit, broadcast-quality, motion-adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion and automatic HD/SD 12-bit component analog output
- All of KONA LHi's conversions are hardware-based, therefore they are available all the time, even during ingest or playback
- Outputs can be configured independently allowing you to have simultaneous HD and SD output, or two different types of HD (720 or 1080) output at the same time via cross-conversion
- The card offers DVCPRO HD hardware acceleration
- HDMI v1.3a with Deep Color at 30/36 bits per pixel on input & output is supported
- It offers 12-bit HD analog component input & output
- The card features 10-bit, hardware-based, real-time up/down/cross-conversions
- 12-bit SD analog component, composite, or S-Video input & output are available
- Dynamic RT hardware acceleration is a standard feature
- The card features (2) channels of balanced XLR AES digital audio and (2) channels of balanced XLR analog audio input & output
- 8-channel SDI embedded audio input & output is included
- HD/SD Genlock and RS-422 machine control are standard features
- It supports LTC input on the reference input
- This solution is compatible with Final Cut Studio applications, Adobe applications and most industry-standard applications
- A breakout cable is included as a standard feature and a breakout box can be purchased separately
| Expansion Slot Placement-1 (MacPro 08 ) |
Slot 4: PCI-e 16x (Set to 4x) Empty/Storage
Slot 3: PCI-e 16x (Set to 4x) Empty/Storage
Slot 2: PCI-e 16x KONA 3 / LHe
Slot 1: PCI-e 16x GPU |
| Expansion Slot Placement-2 (MacPro 08 ) |
Slot 4: PCI-e 16x (Set to 4x) Empty/Storage
Slot 3: PCI-e 16x (Set to 4x) KONA 3
Slot 2: PCI-e 16x Empty/Storage
Slot 1: PCI-e 16x GPU |
| Expansion Slot Placement-1(MacPro pre08) |
Slot 4: PCI-e 16x (Set to 4x) Empty/Storage
Slot 3: PCI-e 16x (Set to 4x) KONA 3 / LHe
Slot 2: PCI-e 16x (Set to 1x) Empty
Slot 1: PCI-e 16x GPU |
| Expansion Slot f/ XServe Intel pre 08 |
Slot 1: PCIe / PCI-X Empty / Storage
Slot 2: PCI-e 16x KONA3 / KONA LHe |
| Expansion Slot f/ XServe Intel 08 |
Slot 1: PCI-X 133 KONA3X / KONA LH
Slot 2: PCI-e 8x Empty / Storage |
| Warranty |
AJA warranty |
