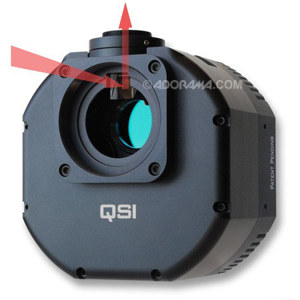

QSI 504WSG Monochrome Cooled Full Frame CCD Camera
Quantum Scientific Imaging
QSI 504wsg Monochrome Cooled Full Frame CCD Camera 504WSG
SKU: QSI504WSG MFR: 504WSG
What's Included
What's Included With This Item:
- QSI 504wsg Monochrome Cooled Full Frame CCD Camera
- Integrated Guider Port
- Internal 5-position Color Filter Wheel
- T-Mount Adapter and Threaded Cap
- T-Mount to 2" Nosepiece
- 12VDC / 90-240VAC Power Supply
- 10' USB 2.0 Interface Cable
- 10' Standard Guider Cable
- QSI Software Installation CDROM
- Drivers for MaxIm DL/CCD and CCDSoft
- ActiveX Developer's Toolkit
- Linux Developer's Toolkit
- Custom Fit Pelican Storage Case
- QSI Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The standard 504wsg model camera employs a 400,000 pixel Kodak Enhanced Response full-frame CCD image sensor with microlens technology. The high quantum efficiency, wide dynamic range and low noise performance make the 504wsg ideally suited to a broad range of demanding astronomical, scientific and industrial imaging applications.
The KAF-0402ME sensor has a photoactive array of 768W x 512H pixels. It has excellent quantum efficiency between 350nm and 1000nm with significant enhancement at the blue end of the spectrum. Low dark current and high pixel charge capacity result in a dynamic range exceeding 76db.
The sensor employs a true two-phase charge transfer technology with a transparent gate that significantly increases optical response compared to traditional front illuminated full frame sensors. Micro lenses cover the surface of the CCD and focus the light through the transparent gate to further increase optical response.
- QSI 504wsg Monochrome Cooled Full Frame CCD Camera
- Integrated Guider Port
- Internal 5-position Color Filter Wheel
- T-Mount Adapter and Threaded Cap
- T-Mount to 2" Nosepiece
- 12VDC / 90-240VAC Power Supply
- 10' USB 2.0 Interface Cable
- 10' Standard Guider Cable
- QSI Software Installation CDROM
- Drivers for MaxIm DL/CCD and CCDSoft
- ActiveX Developer's Toolkit
- Linux Developer's Toolkit
- Custom Fit Pelican Storage Case
- QSI Warranty
- Full-frame 400,000 pixel KAF-0402 sensor
- Low noise, wide dynamic range
- Up to 45 deg. C CCD cooling
- Built-in mechanical shutter
- Available internal 5-position color filter wheel
- Available MaxIm LE camera control and image processing software
- Available CCDSoft and MaxIm DL Drivers
- ASCOM-compatible Windows COM API
- Linux drivers and API
| CCD Manufacturer & Model |
Kodak KAF-0402ME |
| CCD Architecture |
Full Frame |
| Blue Enhanced |
Yes |
| Microlens |
Yes |
| Anti-blooming |
No |
| Imager Size (W x H) |
6.91mm x 4.6mm |
| Pixel Array (W x H) |
784x520 total pixels,
768x512 active (visible) |
| Pixel Size |
9µm x 9µm |
| Pixel Full Well Depth |
100,000 electrons |
| Absolute Quantum Efficiency |
Peak: 83%
400nm: 44% |
| Pixel Dark Current |
< 1.0 electron per second at 0deg.C
< 0.1 electron per second at -25deg.C |
| Dark Current Doubling |
6.3deg. C |
| Intrinsic Read Noise |
15 electrons RMS |
| Dynamic Range |
76db |
| Charge Transfer Efficiency |
> 0.99999 |
| Interface Cable |
10' |
| Standard Guider Cable |
10' |
| Color Filter Wheel |
5-Position |
| Power Supply |
12VDC / 90-240VAC |
