Shure P4HW Wired Bodypack Personal Monitor for PSM 400 In Ear Monitoring System
Shure P4HW Wired Bodypack Personal Monitor P4HW=
SKU: SHP4HW MFR: P4HW=
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Shure P4HW Wired Bodypack Personal Monitor
- 1 Pair 9" (228.6mm) XLR Male to 1/4" TS
- Belt Clip
- Shure Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052

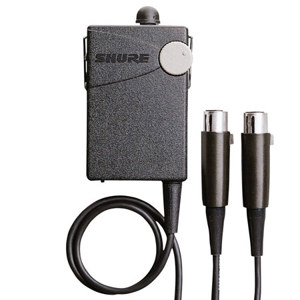

The Shure P4HW Wired Bodypack Personal Monitor is the hardwired, two-channel stereo component for the stage performer of the PSM400 series of monitoring system. This unit is designed to effectively replace the bulk and clutter of the traditional stage monitor/wedge setup. In-Ear monitoring offers the performer more mobility and a roomier stage and the house engineer a lower volume, feedback-free stage environment.
The P4HW bodypack monitor is discreetly sized and housed in a rugged, all-metal chassis. The attached dual XLR Y cable provides the audio connection to the house or monitor console. The P4HW stereo and unique MixMode level control features enable the performer to adjust the mix balances as required during a show, without affecting any other mix sends from the house. The addition of side panel push buttons and a graciously sized LCD screen enable further customizing of the monitor mix in terms of both level and content.
- Shure P4HW Wired Bodypack Personal Monitor
- 1 Pair 9" (228.6mm) XLR Male to 1/4" TS
- Belt Clip
- Shure Warranty
- Multi Function Push Buttons: Select and Scroll push buttons offer a high frequency boost, on/off and defeat control of the built in limiter, frequency selection and MixMode or stereo mix selection
- Volume Knob: This integrated on/off and volume knob offers easily accessible level control
- LCD Screen Lockout: Prevents inadvertent or unwanted changes to P4HW monitor settings during performance
- LED Indicators: Three dedicated LEDs include power, low battery and peak/overloading
- Mix Balance Dial: This offers dedicated control of left/right balances in stereo mode or the mix level of two different mono signals in MixMode
- Metal Chassis: Rugged, yet lightweight and inconspicuous
| Compatibility |
PSM 400 In Ear Monitoring System |
| Frequency Response |
20 to 20,000 Hz |
| Total Harmonic Distortion |
< .1% (measured at -10 dBu out) |
| Channel Separation |
35 dB (minimum) |
| Signal-to-noise ratio |
85 dB (minimum) |
| Maximum Output Level |
+5 dBu at 1% THD |
| Maximum Input Level |
+7 dBu, input pad OFF
+22 dBu, input pad ON |
| Actual Input Impedance |
> 40 kilohms |
| Audio Output Connector |
3.5 mm stereo (left=tip, right=ring, ground=sleeve) |
| Power Requirements |
9 V Alkaline battery |
| Battery Life |
Up to 8 hours, volume dependant |
| Phantom Power Protection |
Up to 60 VDC |
| Dimensions |
4.371 x 2.54 x 1.256" (111 x 64.5 x 31.9mm) |
| Weight |
7.4 oz. (209.8 g) |
