Shure P9TR-G6 PSM900 Wireless Personal Monitoring System
Shure P9TR-G6 PSM900 Wireless Personal Monitoring System P9TR-G6
SKU: SHP9TRG6 MFR: P9TR-G6
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Shure P9T Wireless Transmitter for PSM900 (G6: 470-506MHz)
- P9R Wireless Stereo Bodypack Receiver for PSM900 (G6: 470-506MHz))
- Shure Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052

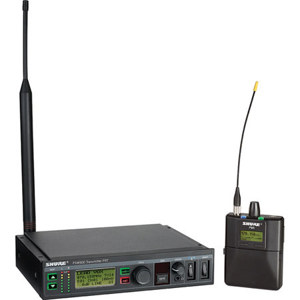

The Shure P9TR-G6 PSM900 is a professional-quality wireless monitoring system that provides high-quality audio and RF performance in a compact and durable design. The system consists of a P9T transmitter and a P9R bodypack receiver. The system features an enhanced digital stereo encoder that enhances audio detail and clarity and patented Audio Reference Companding that sounds more like wired audio than other competing wireless systems.
Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels on a single bodypack receiver. A Scan and Sync function creates an IR link between the components for fast and easy syncing. RF muting provides easy setup without creating RF interference. RF scan and automatic gain features provide excellent RF stability and channel availability and prevent dropout due to RF overload. MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously.
The transmitter has a compact half-rack design with XLR/TRS combo inputs, loop outputs and a 3.5 mm headphone jack for monitoring. It also has a backlit LCD display and LED level meters. The receiver has slim aluminum housing with volume and balance controls and a 3.5 mm headphone jack. It has an LCD screen for navigating settings and menus and it operates on a pair of standard AA batteries.
- Shure P9T Wireless Transmitter for PSM900 (G6: 470-506MHz)
- P9R Wireless Stereo Bodypack Receiver for PSM900 (G6: 470-506MHz))
- Shure Warranty
- RF Mute Switch allows system setup without causing RF interference
- Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Front or back mountable antennas
- Compatible with PA421A and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4" and XLR connectors
- Bit-mapped, backlit LCD
- Includes rack-mounting hardware
- 1/8" headphone out on the front panel for easy monitoring
- Ultra-thin, low profile bodypack allows discreet placement on the performer
- Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail
- RF Scan: stand where the artist will be on stage and instantly check RF level
- Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously
- Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync
- Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
- Separate, easily visible audio and RF status indicator LEDs
- Audio level and battery life metering
- Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
- Volume and balance controls
- Extruded aluminum construction for rugged dependability
| Modulation |
FM, MPX Stereo |
| Operating Range |
300' (90 m) |
| Frequencies |
G6: 470-506MHz |
| Transmitter: Output Power |
10/50/100mW, Selectable (Regionally Dependent) |
| Transmitter: Output Impedance |
50 Ohms (RF, Typical) |
| Transmitter: Input Level |
+4dBu and -10dBV, Switchable |
| Transmitter: Connectors |
2 x XLR/TRS Combo Inputs
2 x 1/4" Loop Outputs
1 x DC Power Input
1 x Antenna Connector
1 x 3.5mm Headphone Jack |
| Transmitter: Power Requirements |
415mA, Typical (RF On, 100mW Power Mode, No Audio) |
| Receiver: Frequency Response |
35Hz - 15kHz |
| Receiver: Signal to Noise Ratio |
90dB |
| Receiver: RF Sensitivity |
2.2uV |
| Receiver: Filter |
-3dB @ 30.5MHz, Front-End RF Filtering |
| Receiver: Gain Control |
31dB |
| Receiver: Image Rejection |
> 100dB |
| Receiver: Adjacent Channel Crosstalk |
> 70dB |
| Receiver: Squelch |
22dB SINAD |
| Receiver: Intermodulation Distortion |
> 70dB |
| Receiver: Load Impedance |
9.5 Ohms |
| Receiver: Output Power |
10/50/100mW, Selectable |
| Receiver: Connectors |
1 x 3.5mm Headphone Jack
1 x Antenna Connector |
| Receiver: Battery Type/Life |
2 x AA, Approx 5-7 Hours |
| Dimensions (W x D x H) |
Transmitter: 7.75 x 6.5 x 1.6" (197 x 166 x 42mm)
Receiver: 2.6 x 0.9 x 3.3" 65 x 22 x 83mm) |
| Weight |
Transmitter: 1.9 lbs (0.85kg)
Receiver: 7.05 oz (200g) (With Batteries) |
