Anchor Audio EXP-7500U2 Wireless Receiver EDP-7500DUAL/CM/LM
SKU: AAEDP750L MFR: EDP-7500DUAL/CM/LM

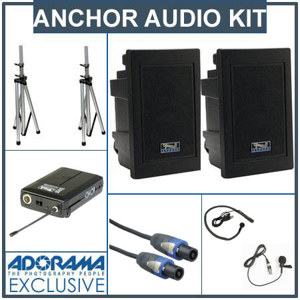

What's Included
What's Included With This Item:
- Anchor Audio EXP-7500U2 Wireless Receiver
- EXP-7501 Unpowered Companion Speaker
- SC-50NL Connection Cable
- Two SS-550 Speaker Stands
- LM-60 Lapel Mic
- CM-60 Collar Mic
- WB-6000 Body Pack
- Anchor Audio Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
Anchor Audio EDP-7500DUAL/CM/LM Explorer Pro Sound System is perfect for sound projection in an indoor or outdoor settings and playing music during school activities. The unit delivers 110dB of intelligible speech from one sound system designed for users with no technical knowledge. Featuring quick set up and easy to use controls, the new Explorer PRO is truly versatile with true AC/DC operation and improved battery life. The system is ideal for schools, corporate trainers and places of worship.
- Anchor Audio EXP-7500U2 Wireless Receiver
- EXP-7501 Unpowered Companion Speaker
- SC-50NL Connection Cable
- Two SS-550 Speaker Stands
- LM-60 Lapel Mic
- CM-60 Collar Mic
- WB-6000 Body Pack
- Anchor Audio Warranty
- Single or Dual UHF Wireless with 16 User Selectable Channels
- LED Displays Battery Level & Charge State
- Two Microphone Combo Input Jacks
- Short Circuit & Thermal Overload Protection
- 6.5" Woven Fiber Woofer & High-Output Horn Tweeter
- Improved "Limiter" circuitry reduces distortion & increases intelligibility
- Speech Projection Mode For Crystal-Clear Voice Projection
- "Voice Over" Music Ducking Feature
- Durable Injection-Molded Polypropylene Case
- External Speaker Output Powers Optional Companion Speaker
| Rated Power Output |
75 watts AC/DC mode |
| Max SPL @ Rated Power |
110 dB @ 1 meter |
| Frequency Response |
80 Hz - 16 kHz |
| Inputs |
Microphone (Two combo): Lo-Z (1 Kohm), balanced, XLR 12 VDC condenser microphone phantom power
Hi-Z (10 Kohm), unbal, 1/4" phone
Auxiliary (line): Hi-Z (10 Kohm), unbal, 1/8" & 1/4" |
| Sensitivity For Rated Output |
Line: -8.4 dBV (380 mVrms)
Mic (unbal & bal): -49 dBV (3.63 mVrms) |
| Outputs |
Line (post fader): Lo-Z, buffered, 1/4"unbalanced/balanced
Speaker: 4-pole Neutrik Speakon jack |
| AC Power Requirements |
90 - 264 VAC, 50/60 Hz |
| Dimensions (H x W x D) |
17" x 10.5" x 9.5" (43 cm x 27 cm x 24 cm) |
| Weight |
23 lbs/ 10.4 Kg |
