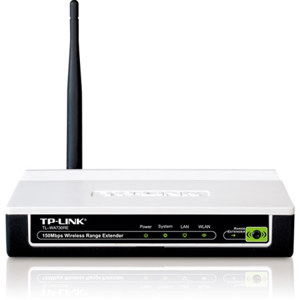

TP-Link TL-WA730RE 150Mbps Wireless Lite N Range Extender
TP-Link
TP-Link TL-WA730RE 150Mbps Wireless Lite N Range Extender TL-WA730RE
SKU: TPLWA730RE MFR: TL-WA730RE
What's Included
What's Included With This Item:
- TP-Link TL-WA730RE 150Mbps Wireless Lite N Range Extender
- Detachable Omni Directional Antenna
- Power Supply Unit
- Resource CD
- Quick Installation Guide
- TP-Link 2 Years Limited Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The TP-Link TL-WA730RE Wireless Range Extender is designed to establish an advanced wireless network with wider coverage and further range, building a wireless infrastructure instead of lots of wires. It provides Range Extender Mode as default wireless mode, working as a "relay station" to pick up wireless signals from a network's base router or access point and repeat the signal flawlessly to previously unreachable or hard-to-wire areas.
It also features its auto-repeater function, connecting the unsecured network instantly at a push of Range Extender Button on the exterior. Better still, it can not only get maximum performance with IEEE 802.11n products, but achieves fully 54Mbps speed when linking with IEEE 802.11g products.
- TP-Link TL-WA730RE 150Mbps Wireless Lite N Range Extender
- Detachable Omni Directional Antenna
- Power Supply Unit
- Resource CD
- Quick Installation Guide
- TP-Link 2 Years Limited Warranty
- 150Mbps wireless data rates ideal for video streaming, online gaming and internet calling
- Range Extender Mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Easily expand wireless coverage at a push of Range Extender button
- Achieves full 54Mbps speed when linking with legacy 802.11g products
- Advanced WPA/WPA2 encryptions protect your network from security threats
- Bundled utility provides quick & hassle free connections to routers or AP
- Provides throughput monitor indicating the current wireless throughput
- Supports configuration backup/restore and firmware upgrades
- External detachable antennas allow for better alignment and stronger antenna upgrades
| Interface |
1-10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX) |
| Button |
Reset Button
Range Extender Button |
| External Power Supply |
9VDC / 0.85A |
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Antenna Type |
4dBi, Detachable Omni Directional (RP-SMA) |
| Frequency |
2.4-2.4835GHz |
| Signal Rate |
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
| EIRP |
<20dBm (EIRP) |
| Reception Sensitivity |
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
| Wireless Modes |
Range Extender / AP Mode |
| Wireless Functions |
WDS Bridge, Wireless Statistics |
| Wireless Security |
SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption |
| Certification |
CE, FCC, RoHS |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Operating Temperature |
0 - 40Deg.C (32 - 104Deg.F) |
| Storage Temperature |
-40 - 70Deg.C (-40 - 158Deg.F) |
| Operating Humidity |
10% - 90% non-condensing |
| Storage Humidity |
5% - 90% non-condensing |
| Dimensions ( W x D x H ) |
5.9 x 3.9 x 1.1 in. (150 x 100x 28mm) |
