QSI 532S Monochrome Cooled Full Frame CCD Camera, 3.2MP
Quantum Scientific Imaging

QSI 532s Monochrome Cooled Full Frame CCD Camera 532S

SKU: QSI532S MFR: 532S
What's Included
What's Included With This Item:
  • QSI 532s Monochrome Cooled Full Frame CCD Camera
  • T-Mount Camera Adapter
  • T-Mount Adapter Cover
  • T-Mount to 2" Nosepiece
  • 12VDC / 90-240VAC power supply
  • 10' USB 2.0 Interface Cable
  • 10' Standard Guider Cable
  • QSI Software Installation CDROM
  • Drivers for MaxIm DL/CCD and CCDSoft
  • ActiveX Developer's Toolkit
  • Linux Developer's Toolkit
  • Custom Fit Pelican Storage Case
  • QSI Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$6,295.00
Free Shipping (USA)
Qty:

Add to Wishlist

Related Categories

Full Frame Camera    Cooled Ccd Camera    Shutter Camera    Cameras Axis    Monochrome Cameras    Scientific Ccd    Megapixel Ccd    Cool Cameras    Monochrome Ccd Camera    Ccd Camera
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The standard 532 model camera employs a 3.2 megapixel Kodak Enhanced Response full-frame CCD image sensor with microlens technology. The high quantum efficiency, wide dynamic range and low noise performance make the 532 ideally suited to a broad range of demanding astronomical, scientific and industrial imaging applications.

The 500 series sets a new benchmark for compact design and power efficiency in a high performance, full-featured scientific CCD camera. With optional features and upgradeability, the 532 can be tailored to fit your needs today and in the future.

The 532 camera system is supported by industry leading image acquisition software and development tools are available for creating custom Windows or Linux imaging applications.

What's Included With This Item

  • QSI 532s Monochrome Cooled Full Frame CCD Camera
  • T-Mount Camera Adapter
  • T-Mount Adapter Cover
  • T-Mount to 2" Nosepiece
  • 12VDC / 90-240VAC power supply
  • 10' USB 2.0 Interface Cable
  • 10' Standard Guider Cable
  • QSI Software Installation CDROM
  • Drivers for MaxIm DL/CCD and CCDSoft
  • ActiveX Developer's Toolkit
  • Linux Developer's Toolkit
  • Custom Fit Pelican Storage Case
  • QSI Warranty

Related Products

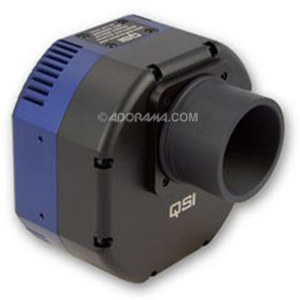

QSI 504ws Monochrome Cooled Full Frame CCD Camera 504WS
QSI 504ws Monochrome Cooled Full Frame CCD Camera 504WS
$3,290.00
Free Shipping
Add to wish list

QSI 532ws Monochrome Cooled Full Frame CCD Camera 532WS
QSI 532ws Monochrome Cooled Full Frame CCD Camera 532WS
$6,590.00
Free Shipping
Add to wish list

QSI 532wsg Monochrome Cooled Full Frame CCD Camera 532WSG
QSI 532wsg Monochrome Cooled Full Frame CCD Camera 532WSG
$6,990.00
Free Shipping
Add to wish list

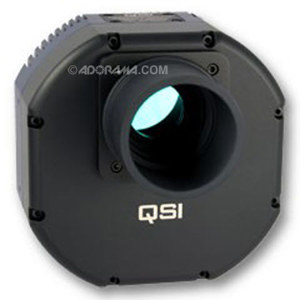

QSI 583ws Monochrome Cooled Full Frame CCD Camera 583WS
QSI 583ws Monochrome Cooled Full Frame CCD Camera 583WS
$3,290.00
Free Shipping
Add to wish list

QSI 516s Monochrome Cooled Full Frame CCD Camera 516S
QSI 516s Monochrome Cooled Full Frame CCD Camera 516S
$3,895.00
Free Shipping
Add to wish list

Key Features

  • Full-frame 3.2 megapixel KAF-3200 sensor
  • Low noise, wide dynamic range
  • Up to 45°C CCD cooling
  • Built-in mechanical shutter
  • Available internal 5-position color filter wheel
  • Available MaxIm LE camera control and image processing software
  • Available CCDSoft and MaxIm DL Drivers
  • ASCOM-compatible Windows API
  • Linux drivers and API

Technical Specs

Standard CCD Image Sensor KAF-3200ME
Shutter Mechanical, exposure range: 0.03 seconds to 240 minutes
Internal Color Filter Wheel No
Filters None
Camera Body Configuration Medium Enclosure
Optical Back Focus (w/o Filters in path) 0.90" with T mounting adapter
0.68" with C mounting adapter
0.68" w/o mounting adapter
Thermoelectric CCD Cooling Temperature regulation +/- 0.1°C, @ 0°C to -40°C CCD temperature
In free air, Fans @ Full Speed Typically 38°C below ambient air with 85% cooling power
With Opt Liquid Cooling - Fans Off Typically 45°C below circulating liquid with 85% cooling power (adds 0.75" to camera depth)
Cooling Fan Control Intelligent, user configurable
Camera Gain 1.25 electrons per ADU
Digital Resolution 16 bits
Total System Read Noise Typically < 8 electrons RMS (CCD specification limited)
Pixel Dark Current < 0.5 electron per second at 0°C
< 0.05 electron per second at -25°C
Full Image Read and Download Time Typically < 8 seconds (host computer dependent)
Binning Modes Symmetrical on-chip 2x2 and 3x3, user selectable
Status and Notification User configurable multi-color LED status indicator and multifunction audible beeper. Over-temperature and high/low voltage alarms
Power Consumption 12V, 1.5A (18 watts) at max cooling, max fans and filter moving (25 AC watts max with included 90-240V AC power supply)
Operating Environment Temperature: -20°C to 30°C, Humidity: 10% to 90% non-condensing
Computer Connectivity USB 2.0 (USB 1.1 compatible)
Other Ports Optically isolated 4 channel control port for telescope guiding or other application specific control
T Mounting Adapter Standard adapter - T-Thread, 42mm x .75mm
C Mounting Adapter (1" x 32TPI) Optional, C-Mount lens focus compatible (17.5mm backfocus)
Nosepiece Standard, T-Adapter to 2" nosepiece
Optional, T-Adapter to 1.25" nosepiece
Dimensions (W x H x D) 4.45 x 4.45 x 2.00in / 11.30 x 11.30 x 5.08cm (add 0.23" for T-Mount)
Weight, without Nosepiece 34oz / 950g
