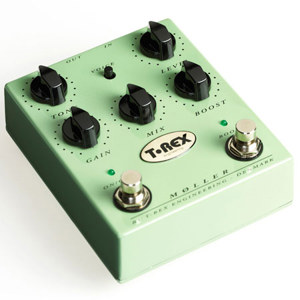

T-Rex Moller Classic Overdrive Pedal with Clean Boost
T-Rex Engineering
T-Rex Moller Classic Overdrive Pedal MOLLER
SKU: TXMOLLER MFR: MOLLER
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The T-Rex Moller is a classic overdrive pedal that provides a wealth of dynamic overdriven tones with superb tonal control, as well as separate transparent 0-20 db adjustable and switchable clean boost and a unique overdrive/clean mix option. The mix knob lets you dial in the perfect balance between distorted and non-distorted signal. Rolled all the way up and with distortion maxed too, the pedal sounds just like an old tube amp on full volume.
Roll the mix knob back a bit and your clean signal starts to get through, meaning that if you pick lightly, or roll back the volume on your guitar, you get a stunning clean/softly clipping sound that retains all the feel and dynamics of your original tone, only bigger, louder and richer. The boost function lets you dial in a solo level, whether the overdrive circuit is activated or not.
- Tone: Adjusts the flavor of overdrive
- Gain: Controls the amount of overdrive. This pedal has lots of body, even with Gain turned down
- Mix: Blends distorted (wet) and non-distorted (dry) signal
- Boost: Determines the amount of boost, from 1 - 20 db
- Level: Adjusts the output volume
- Voice: This pedal is tuned to fit all types of pickups, from Humbucker to single coil. Hit the VOICE button and hear the difference
| Input Impedance @ 1KHz |
353KOhm |
| Output Impedance@1KHz |
105Ohm |
| Power supply |
9V DC (Power tool 9) |
| Minimum Power supply Voltage |
8,5V DC |
| Maximum Power supply Voltage |
12,5V DC |
| Current Draw @ 9V DC |
16mA |
| Maximum input signal Vp/p |
2,5Vp/p |
| Battery Type |
9V battery 6F22 |
| Battery Life |
5 to 8 Hour |
| External connectors |
Input Jack/Output Jack: 9V DC Jack |
| Controls |
On/Off, Boost On/Off Level, Gain Tone, Mix Boost. Voice |
| Dimensions (D x W x H) |
120 x 100 x 55 mm (4.7 x 3.9 x 2.2 in) |
| Weight |
0.424 Kg (0.93 lbs) |
