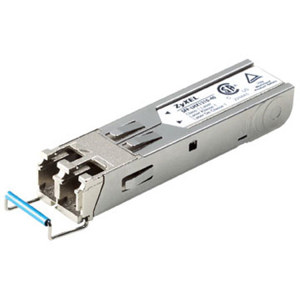

ZyXEL SFP-IHX1310-40 1000Base-LHX SFP Transceiver
ZyXEL SFP-IHX1310-40 Single-Mode 1000Base-LHX SFP Transceiver SFP-LHX1310
SKU: ZYSFPLHX1310 MFR: SFP-LHX1310
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
ZyXEL SFP-IHX1310-40 Single-Mode SFP Transceiver provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port. ZyXEL's SFP transceiver's compact design provides high port density. It is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.
- Industry Standard Compliance
- SFP MSA (Multi-Source Agreement) Compliance
- Hot-Pluggable with Maximum Flexibility
- Compact Size, High Port Density
- Single +3.3V Power Supply
- Low Power Dissipation
| Optical Receiver Sensitivity |
-23 dBm |
| Wavelength |
1310nm |
| Connector |
LC |
| Transmission Distance vs. Fiber Cable |
9/10um SMF: 40 km |
| Supply Voltage |
3.15-3.45 V |
| Max Current |
300mA |
| Operating Temperature |
32deg.F - 158deg.F / 0deg.C - 70deg.C |
| Storage Temperature |
-40deg.F - 185deg.F / -40deg.C - 85deg.C |
| Relative Humidity |
5% - 95% |
| Safety Certification |
Class 1 Laser
21 CFR 1040.10 and 1040.11 compliant
CSA
TUV |
| Dimensions (W x D x H) |
2 x 0.5 x 0.5" / 56 x 13.4 x 12.46 mm |
