| SDI Video Input |

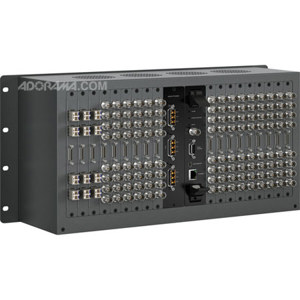

Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI. Can be BNC SDI or optical fiber SDI |
| SDI Video Output |
Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI |
| Multi Rate Support |
Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI |
| Device Control |

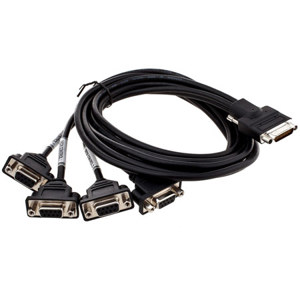

Up to 72 bidirectional Sony compatible RS-422 deck control ports via breakout cable |
| Router Control |
Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network |
| Router Configuration |
Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network |
| RS-422 Router Control |
1 x input for controlling router crosspoint switching |
| Updates |
USB 2.0 high speed (480Mb/s) interface |
| Re-clocking |
On all SDI outputs |
| Reference Input |
Blackburst and TriSync for SD, HD and 2K |
| SD Format Support |
625/25 PAL and 525/29.97 NTSC |
| HD Format Support |
1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60 |
| 2K Format Support |
2048 x 1556/23.98/24/25 |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Sampling |
4:2:2 and 4:4:4 |
| SDI Video Rates |
SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI |
| SDI Color Precision |
4:2:2 and 4:4:4 10 bit |
| SDI Color Space |
YUV or RGB |
| SDI Metadata Support |
Video payload identification ancillary data as per SMPTE 352M |
| SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit |
| SDI Auto Switching |
Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard |
| Software Control |
Router control included free for Windows and Mac OS X |
| Firmware Upgrade |
Via included firmware updater application |
| Installation |
5 rack unit size. Less than 6 inches deep |
| Power Supply |

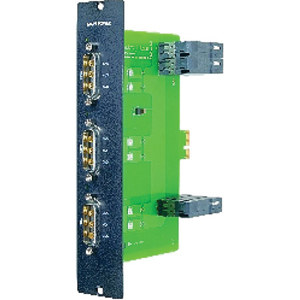

Redundant power supply options are available. GPI alarm for connecting external alarms |
| Power Fail Protection |
Router connections preserved and restored instantly at power on independently of host computer |
