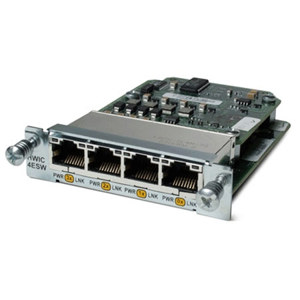

Cisco 4-Port Ethernet Switch WAN Interface Card
Cisco 4-Port Ethernet Switch High-Speed WAN Interface Card HWIC-4ESW-POE=
SKU: CI4ESWPOE MFR: HWIC-4ESW-POE=
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The 4-port Cisco EtherSwitch 10/100 high-speed WAN interface card (HWIC) supported on the Cisco 2800 and Cisco 3800 series integrated services routers offer small-to-large-size businesses and enterprise branch office customers the option to integrate switching and routing in one device. This combination offers ease of configuration, deployment and management while using the powerful characteristics of Cisco routing and Cisco Catalyst switching features.
The Cisco EtherSwitch HWIC with the optional internal chassis provides IP phone power and phone discovery for IP phones. In addition, the Cisco EtherSwitch HWIC supports separate VLAN configuration for IP phones. The auxiliary VLAN feature allows network administrators to segment phones into separate logical networks, even though the data and voice infrastructures are physically the same. The phone discovery feature allows the Cisco 4-port EtherSwitch HWIC to automatically detect the presence of an IP phone and supply inline power.
| Daughter Cards |
4-port inline power module (ILPM-4=) |
| Compatibility |
Supported Platforms:
2801
2811
2821
2851
3825
3845 |
| Application/Usage |
Wide Area Network |
| Interfaces/Ports Details |
4 x RJ-45 10/100Base-TX Auto-sensing/Auto- negotiating/Auto MDI/MDI-X |
| Status Indicators |
Link status
Inline power |
| Humidity |
10% to 85% Non-condensing Operating
5% to 95% Non-condensing Non-operating |
| Management 1 |
CiscoWorks network management software
SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management
Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis |
| Management 2 |
Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer
Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device
Virtual LAN |
| Data Transfer Rate |
10 Mbps Ethernet Half/Full-duplex
100 Mbps Fast Ethernet Half/Full-duplex |
| Security |
802.1X Port-based Network Access Control |
| Temperature |
32F (0 Deg.C) to 104F (40 Deg.C) Operating
-4F (-20 Deg.C) to 149F (65 Deg.C) Non-operating |
| Protocols |
TCP/IP
SNMP v1
SNMPv2
SNMPv3
Telnet
TFTP
IGMP
NTP
STP
VTP
CDPv1
CDPv2
PPP
EAP
OSPF
HSRP |
| Connectivity Media |
Category 3 UTP 10Base-T
Category 4 UTP 10Base-T
Category 5 UTP 10/100Base-TX |
| Interface Type |
10/100Base-TX |
| Number of Ports/Channels |
4 |
| System Requirements |
Supported Platforms & Minimum IOS Versions:
3845 - 12.3(11)T
3825 - 12.3(11)T
2851 - 12.3(8)T
2821 - 12.3(8)T
2811 - 12.3(8)T
2801 - 12.3(8)T |
